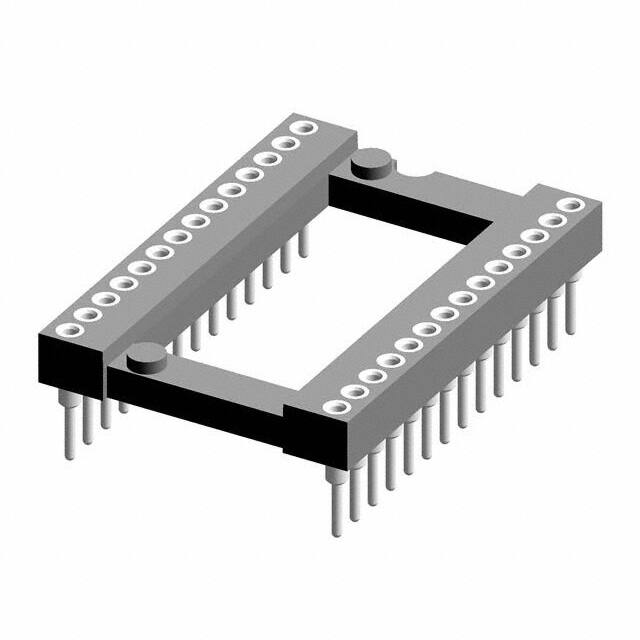

117-83-628-41-005101

Teknik Özellikler

Pcb Contact Pattern

RECTANGULAR

Number Of Positions Or Pins Grid

28 (2 x 14)

Dielectric Withstanding Voltage

1400VAC V

Number Of Contacts

28

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Radyasyon Dayanımı

No

Lead Length

3.175mm

Contact Material Post

Brass

HTS Kodu

8536.69.40.40

Insulation Resistance

10000000000Ohm

Terminal Adımı

1.778mm

Pcb Contact Row Spacing

0.6 mm

Ambalaj

Bulk

Flammability Rating

UL94 V-0

Özellikler

Open Frame

Body Depth

0.165 inch

Yayın Yılı

2012

Pitch Mating

0.070 1.78mm

Montaj

Through Hole

Termination Post Length

0.125 3.18mm

Contact Finish Mating

Gold

Fabrika Tedarik Süresi

10 Weeks

RoHS Durumu

ROHS3 Compliant

Parça Durumu

Active

Contact Finish Post

Tin

Contact Finish Thickness Mating

29.5μin 0.75μm

Montaj Tipi

Through Hole

Mating Contact Pitch

0.07 inch

Tip

DIP, 0.6 (15.24mm) Row Spacing

Terminal

Solder

Material Flammability Rating

UL94 V-0

Çalışma Sıcaklığı

-55°C~125°C

Sıra Sayısı

2

Orientation

Straight

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Material Mating

Beryllium Copper

Akım Değeri

1A

Contact Style

RND PIN-SKT

Body Breadth

0.694 inch

Seri

117
