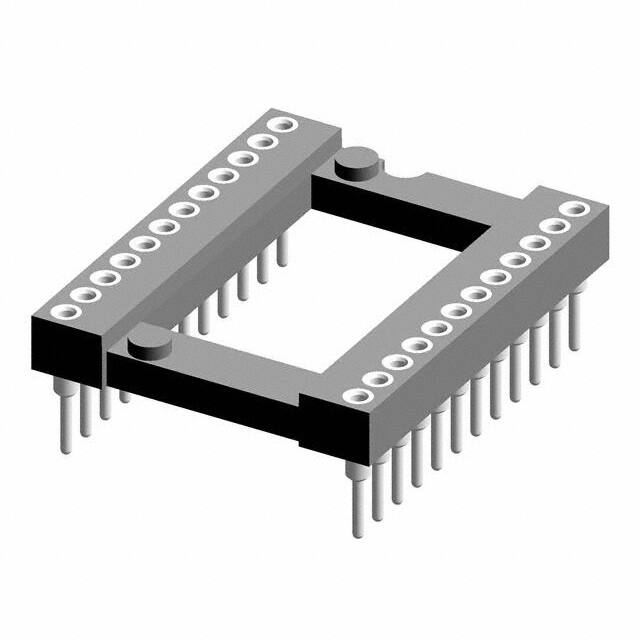

117-83-624-41-005101

Teknik Özellikler

Contact Material Post

Brass

Terminal Adımı

1.778mm

Insulation Resistance

10000000000Ohm

Lead Length

3.175mm

Dielectric Withstanding Voltage

1400VAC V

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Number Of Contacts

24

Pcb Contact Pattern

RECTANGULAR

Number Of Positions Or Pins Grid

24 (2 x 12)

RoHS Durumu

ROHS3 Compliant

Contact Finish Thickness Mating

29.5μin 0.75μm

Parça Durumu

Active

Contact Finish Post

Tin

Montaj

Through Hole

Fabrika Tedarik Süresi

10 Weeks

Termination Post Length

0.125 3.18mm

Contact Finish Mating

Gold

Ambalaj

Bulk

Flammability Rating

UL94 V-0

Body Depth

0.165 inch

Yayın Yılı

2012

Pitch Mating

0.070 1.78mm

Özellikler

Open Frame

Pcb Contact Row Spacing

0.6 mm

Contact Material Mating

Beryllium Copper

Nem Hassasiyeti (MSL)

1 (Unlimited)

Akım Değeri

1A

Contact Style

RND PIN-SKT

Çalışma Sıcaklığı

-55°C~125°C

Material Flammability Rating

UL94 V-0

Mating Contact Pitch

0.07 inch

Montaj Tipi

Through Hole

Tip

DIP, 0.6 (15.24mm) Row Spacing

Terminal

Solder

Pitch Post

0.070 1.78mm

Pin Sayısı

24

Contact Resistance

10mOhm

Body Breadth

0.694 inch

Seri

117

Body Length Or Diameter

0.854 inch
