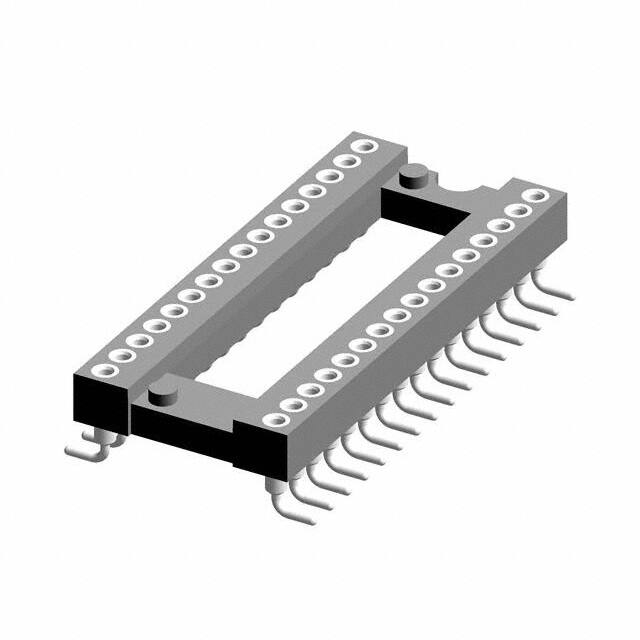

117-83-432-41-105101

Teknik Özellikler

Material Flammability Rating

UL94 V-0

Mating Contact Pitch

0.07 inch

Montaj Tipi

Through Hole

Tip

DIP, 0.4 (10.16mm) Row Spacing

Terminal

Solder

Contact Material Mating

Beryllium Copper

Nem Hassasiyeti (MSL)

1 (Unlimited)

Akım Değeri

1A

Contact Style

RND PIN-SKT

Çalışma Sıcaklığı

-55°C~125°C

Body Breadth

0.5 inch

Seri

117

Body Length Or Diameter

1.133 inch

Pitch Post

0.070 1.78mm

Pin Sayısı

32

Contact Resistance

10mOhm

Dielectric Withstanding Voltage

1400VAC V

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Number Of Contacts

32

Number Of Positions Or Pins Grid

32 (2 x 16)

Contact Material Post

Brass

Insulation Resistance

10000000000Ohm

Lead Length

3.175mm

Flammability Rating

UL94 V-0

Ambalaj

Bulk

Yayın Yılı

2012

Body Depth

0.22 inch

Pitch Mating

0.070 1.78mm

Özellikler

Open Frame

RoHS Durumu

ROHS3 Compliant

Contact Finish Thickness Mating

29.5μin 0.75μm

Contact Finish Post

Tin

Parça Durumu

Active

Montaj

Through Hole

Fabrika Tedarik Süresi

10 Weeks

Termination Post Length

0.125 3.18mm

Contact Finish Mating

Gold
