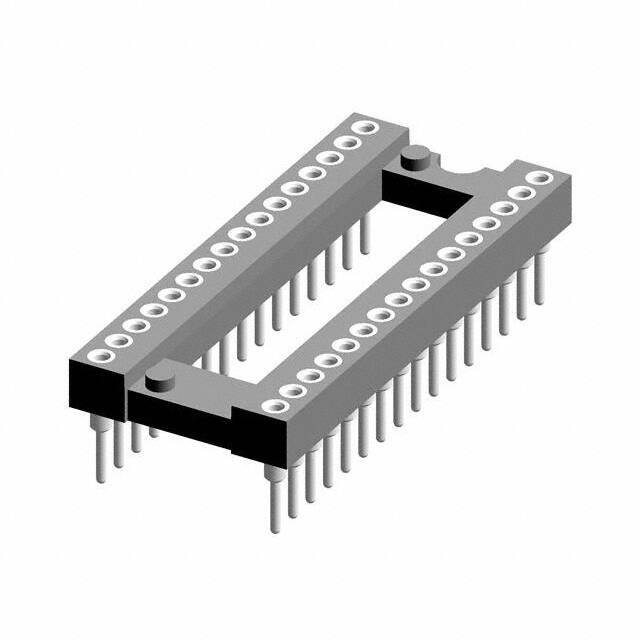

117-83-432-41-005101

Teknik Özellikler

HTS Kodu

8536.69.40.40

Contact Material Post

Brass

Insulation Resistance

10000000000Ohm

Terminal Adımı

1.778mm

Lead Length

3.175mm

Dielectric Withstanding Voltage

1400VAC V

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Number Of Contacts

32

Pcb Contact Pattern

RECTANGULAR

Number Of Positions Or Pins Grid

32 (2 x 16)

RoHS Durumu

ROHS3 Compliant

Contact Finish Thickness Mating

29.5μin 0.75μm

Parça Durumu

Active

Contact Finish Post

Tin

Montaj

Through Hole

Fabrika Tedarik Süresi

10 Weeks

Contact Finish Mating

Gold

Termination Post Length

0.125 3.18mm

Flammability Rating

UL94 V-0

Ambalaj

Bulk

Pitch Mating

0.070 1.78mm

Yayın Yılı

2012

Body Depth

0.165 inch

Özellikler

Open Frame

Pcb Contact Row Spacing

0.4 mm

Contact Material Mating

Beryllium Copper

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Style

RND PIN-SKT

Akım Değeri

1A

Çalışma Sıcaklığı

-55°C~125°C

Material Flammability Rating

UL94 V-0

Mating Contact Pitch

0.07 inch

Montaj Tipi

Through Hole

Tip

DIP, 0.4 (10.16mm) Row Spacing

Terminal

Solder

Pitch Post

0.070 1.78mm

ECCN Kodu

EAR99

Pin Sayısı

32

Contact Resistance

10mOhm

Body Breadth

0.5 inch
