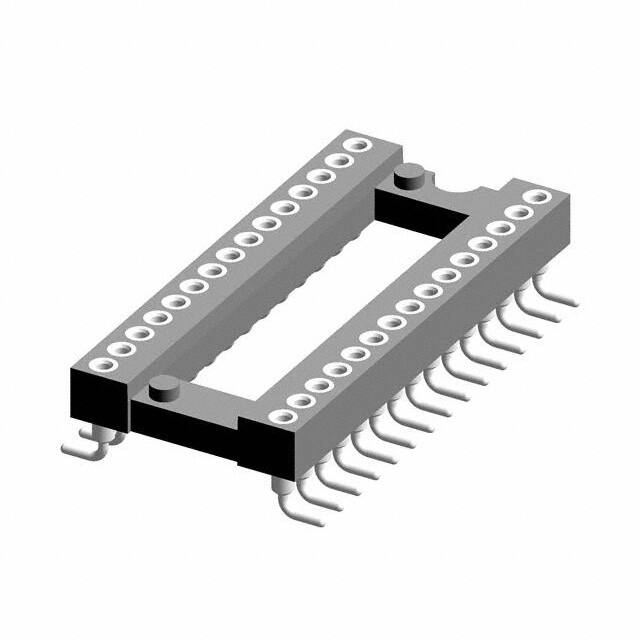

117-83-430-41-105101

Teknik Özellikler

Number Of Positions Or Pins Grid

30 (2 x 15)

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Number Of Contacts

30

Dielectric Withstanding Voltage

1400VAC V

Lead Length

3.175mm

Insulation Resistance

10000000000Ohm

Contact Material Post

Brass

Body Depth

0.22 inch

Yayın Yılı

2012

Pitch Mating

0.070 1.78mm

Özellikler

Open Frame

Ambalaj

Bulk

Flammability Rating

UL94 V-0

Fabrika Tedarik Süresi

10 Weeks

Contact Finish Mating

Gold

Termination Post Length

0.125 3.18mm

Montaj

Through Hole

Contact Finish Thickness Mating

29.5μin 0.75μm

Contact Finish Post

Tin

Parça Durumu

Active

RoHS Durumu

ROHS3 Compliant

Tip

DIP, 0.4 (10.16mm) Row Spacing

Terminal

Solder

Mating Contact Pitch

0.07 inch

Montaj Tipi

Through Hole

Material Flammability Rating

UL94 V-0

Çalışma Sıcaklığı

-55°C~125°C

Contact Style

RND PIN-SKT

Akım Değeri

1A

Contact Material Mating

Beryllium Copper

Nem Hassasiyeti (MSL)

1 (Unlimited)

Body Length Or Diameter

0.992 inch

Seri

117

Body Breadth

0.5 inch

Pin Sayısı

30

Contact Resistance

10mOhm

Pitch Post

0.070 1.78mm
