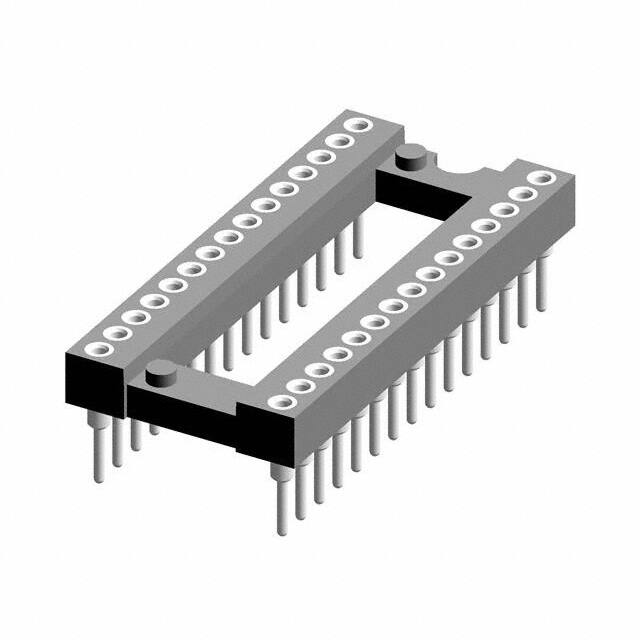

117-83-430-41-005101

Teknik Özellikler

Montaj

Through Hole

Termination Post Length

0.125 3.18mm

Contact Finish Mating

Gold

Fabrika Tedarik Süresi

10 Weeks

RoHS Durumu

ROHS3 Compliant

Contact Finish Post

Tin

Parça Durumu

Active

Contact Finish Thickness Mating

29.5μin 0.75μm

Pcb Contact Row Spacing

0.4 mm

Flammability Rating

UL94 V-0

Ambalaj

Bulk

Özellikler

Open Frame

Pitch Mating

0.070 1.78mm

Yayın Yılı

2012

Body Depth

0.165 inch

Lead Length

3.175mm

Contact Material Post

Brass

Insulation Resistance

10000000000Ohm

Terminal Adımı

1.778mm

Pcb Contact Pattern

RECTANGULAR

Number Of Positions Or Pins Grid

30 (2 x 15)

Dielectric Withstanding Voltage

1400VAC V

Number Of Contacts

30

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Contact Resistance

10mOhm

Pin Sayısı

30

REACH Uyumluluk Kodu

unknown

Pitch Post

0.070 1.78mm

Body Length Or Diameter

1.063 inch

Body Breadth

0.5 inch

Seri

117

Çalışma Sıcaklığı

-55°C~125°C

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Material Mating

Beryllium Copper

Akım Değeri

1A

Contact Style

RND PIN-SKT

Montaj Tipi

Through Hole

Mating Contact Pitch

0.07 inch

Terminal

Solder

Tip

DIP, 0.4 (10.16mm) Row Spacing
