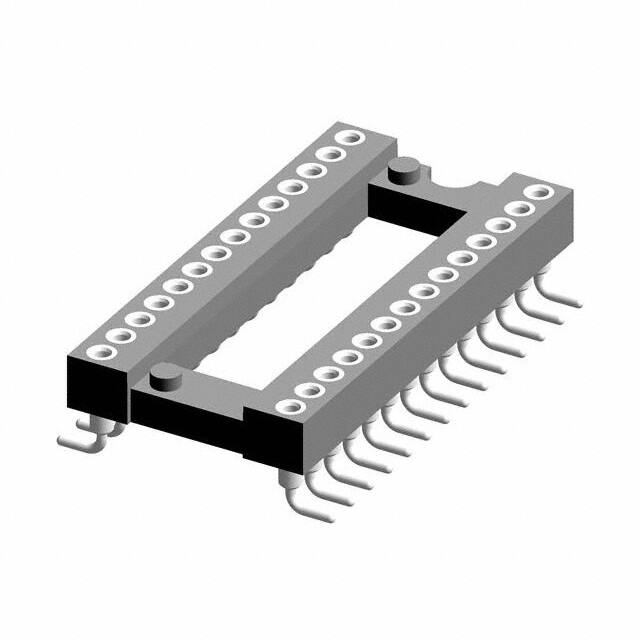

117-83-428-41-105101

Teknik Özellikler

Insulation Resistance

10000000000Ohm

Contact Material Post

Brass

Lead Length

3.175mm

Number Of Contacts

28

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Dielectric Withstanding Voltage

1400VAC V

Number Of Positions Or Pins Grid

28 (2 x 14)

Parça Durumu

Active

Contact Finish Post

Tin

Contact Finish Thickness Mating

29.5μin 0.75μm

RoHS Durumu

ROHS3 Compliant

Contact Finish Mating

Gold

Termination Post Length

0.125 3.18mm

Fabrika Tedarik Süresi

10 Weeks

Montaj

Through Hole

Özellikler

Open Frame

Pitch Mating

0.070 1.78mm

Yayın Yılı

2012

Body Depth

0.22 inch

Flammability Rating

UL94 V-0

Ambalaj

Bulk

Contact Style

RND PIN-SKT

Akım Değeri

1A

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Material Mating

Beryllium Copper

Çalışma Sıcaklığı

-55°C~125°C

Material Flammability Rating

UL94 V-0

Tip

DIP, 0.4 (10.16mm) Row Spacing

Terminal

Solder

Montaj Tipi

Through Hole

Mating Contact Pitch

0.07 inch

REACH Uyumluluk Kodu

unknown

Pitch Post

0.070 1.78mm

Contact Resistance

10mOhm

Pin Sayısı

28

Seri

117

Body Breadth

0.5 inch

Body Length Or Diameter

0.992 inch
