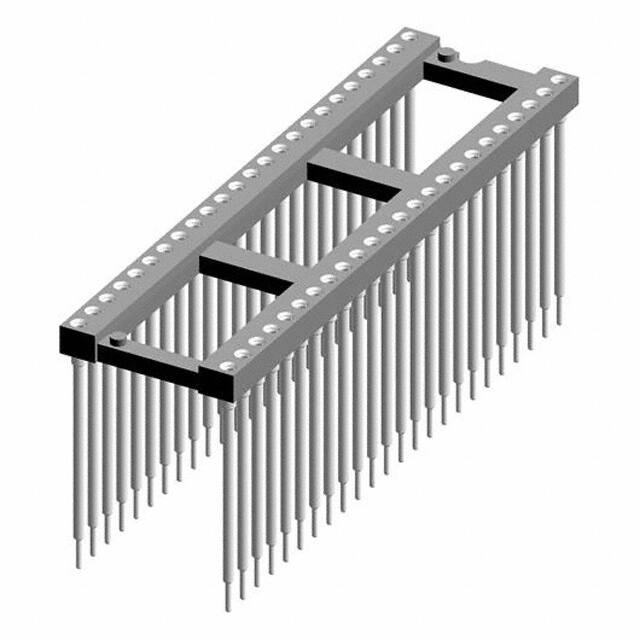

116-87-648-41-004101

Teknik Özellikler

HTS Kodu

8536.69.40.40

Terminal

Solder

Özellikler

Elevated, Open Frame

Seri

116

JESD-609 Kodu

e3

Pitch Post

0.100 2.54mm

Contact Finish Mating

Gold

Yayın Yılı

2012

Additional Feature

94V-0

Number Of Positions Or Pins Grid

48 (2 x 24)

Contact Resistance

10mOhm

Pin Sayısı

48

Material Flammability Rating

UL94 V-0

Montaj Tipi

Through Hole

Contact Finish Post

Tin

Number Of Contacts

48

Lead Length

3.175mm

ECCN Kodu

EAR99

Contact Material Post

Brass

Termination Post Length

0.125 3.18mm

Akım Değeri

1A

Contact Finish Thickness Mating

Flash

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Ambalaj

Bulk

Pitch Mating

0.100 2.54mm

Tip

DIP, 0.6 (15.24mm) Row Spacing

Parça Durumu

Active

Flammability Rating

UL94 V-0

Fabrika Tedarik Süresi

10 Weeks

Nem Hassasiyeti (MSL)

1 (Unlimited)

RoHS Durumu

ROHS3 Compliant

Contact Material Mating

Beryllium Copper

Çalışma Sıcaklığı

-55°C~125°C

Montaj

Through Hole

Kurşunsuz Kodu

yes
