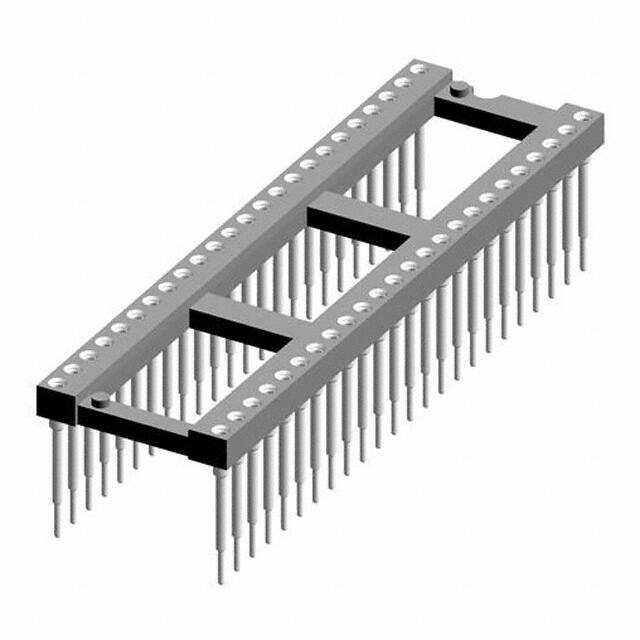

116-87-648-41-002101

Teknik Özellikler

Number Of Contacts

48

Lead Length

3.175mm

ECCN Kodu

EAR99

Contact Material Post

Brass

Termination Post Length

0.125 3.18mm

Additional Feature

94V-0

Number Of Positions Or Pins Grid

48 (2 x 24)

Contact Resistance

10mOhm

Pin Sayısı

48

Material Flammability Rating

UL94 V-0

Montaj Tipi

Through Hole

Contact Finish Post

Tin

Yayın Yılı

2012

Terminal

Solder

HTS Kodu

8536.69.40.40

Seri

116

Özellikler

Elevated, Open Frame

JESD-609 Kodu

e3

Pitch Post

0.100 2.54mm

Contact Finish Mating

Gold

Contact Material Mating

Beryllium Copper

Montaj

Through Hole

Kurşunsuz Kodu

yes

Çalışma Sıcaklığı

-55°C~125°C

RoHS Durumu

ROHS3 Compliant

Pitch Mating

0.100 2.54mm

Tip

DIP, 0.6 (15.24mm) Row Spacing

Parça Durumu

Active

Flammability Rating

UL94 V-0

Fabrika Tedarik Süresi

10 Weeks

Nem Hassasiyeti (MSL)

1 (Unlimited)

Akım Değeri

1A

Contact Finish Thickness Mating

Flash

Ambalaj

Bulk

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
