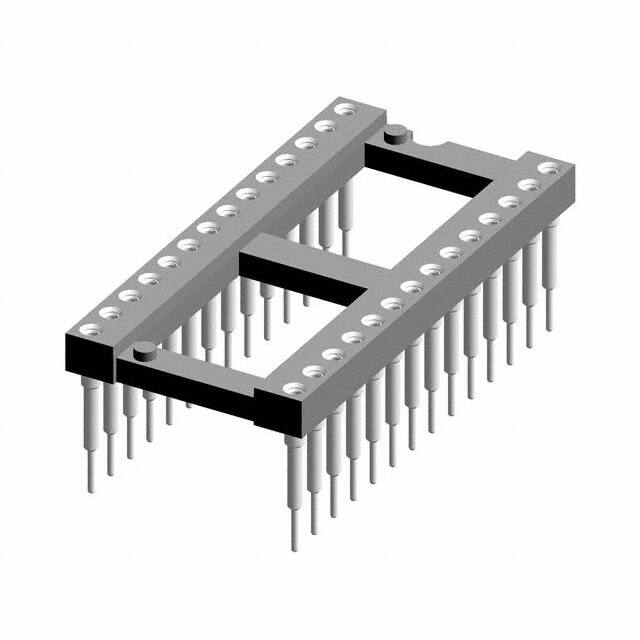

116-87-628-41-012101

Teknik Özellikler

Yayın Yılı

2012

Voltage Rated Dc

150V

Depth

12.6mm

Contact Finish Mating

Gold

JESD-609 Kodu

e3

Pitch Post

0.100 2.54mm

Özellikler

Elevated, Open Frame

Seri

116

HTS Kodu

8536.69.40.40

Terminal

Solder

Termination Post Length

0.125 3.18mm

Contact Material Post

Brass

Insulation Materials

Polychlorinated

ECCN Kodu

EAR99

Number Of Contacts

28

Lead Length

3.175mm

Contact Finish Post

Tin

Montaj Tipi

Through Hole

Material Flammability Rating

UL94 V-0

Contact Resistance

10mOhm

Number Of Positions Or Pins Grid

28 (2 x 14)

Orientation

Straight

Additional Feature

94V-0

Nem Hassasiyeti (MSL)

1 (Unlimited)

Flammability Rating

UL94 V-0

Fabrika Tedarik Süresi

10 Weeks

Parça Durumu

Active

Tip

DIP, 0.6 (15.24mm) Row Spacing

Contact Materials

Copper

Pitch Mating

0.100 2.54mm

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Ambalaj

Bulk

Contact Finish Thickness Mating

Flash

Akım Değeri

1A

Insulation Resistance

10GOhm

Montaj

Through Hole

Kurşunsuz Kodu

yes

Çalışma Sıcaklığı

-55°C~125°C

Sıra Sayısı

2

Contact Material Mating

Beryllium Copper
