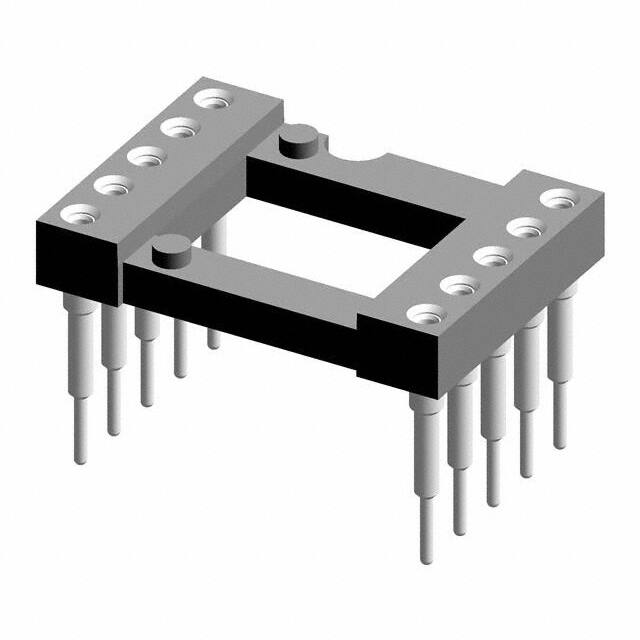

116-87-610-41-003101

Teknik Özellikler

Yayın Yılı

2012

Özellikler

Elevated, Open Frame

Seri

116

HTS Kodu

8536.69.40.40

Terminal

Solder

Contact Finish Mating

Gold

JESD-609 Kodu

e3

Pitch Post

0.100 2.54mm

ECCN Kodu

EAR99

Number Of Contacts

10

Lead Length

3.175mm

Termination Post Length

0.125 3.18mm

Contact Material Post

Brass

Material Flammability Rating

UL94 V-0

Pin Sayısı

10

Number Of Positions Or Pins Grid

10 (2 x 5)

Contact Resistance

10mOhm

Additional Feature

94V-0

Contact Finish Post

Tin

Montaj Tipi

Through Hole

Tip

DIP, 0.6 (15.24mm) Row Spacing

Parça Durumu

Active

Pitch Mating

0.100 2.54mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Flammability Rating

UL94 V-0

Fabrika Tedarik Süresi

10 Weeks

Akım Değeri

1A

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Ambalaj

Bulk

Contact Finish Thickness Mating

Flash

Kurşunsuz Kodu

yes

Montaj

Through Hole

Çalışma Sıcaklığı

-55°C~125°C

Contact Material Mating

Beryllium Copper

RoHS Durumu

ROHS3 Compliant
