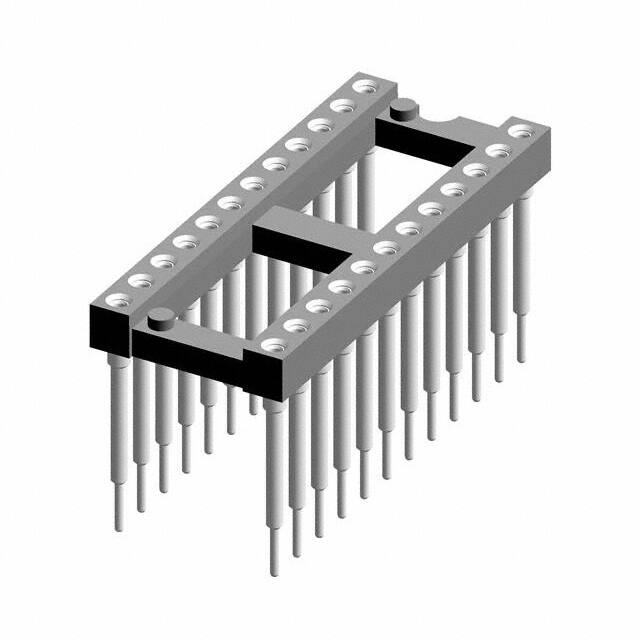

116-87-424-41-008101

Teknik Özellikler

Pitch Mating

0.100 2.54mm

Parça Durumu

Active

Tip

DIP, 0.4 (10.16mm) Row Spacing

Fabrika Tedarik Süresi

10 Weeks

Flammability Rating

UL94 V-0

Nem Hassasiyeti (MSL)

1 (Unlimited)

Akım Değeri

1A

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Ambalaj

Bulk

Contact Finish Thickness Mating

Flash

Contact Material Mating

Beryllium Copper

Montaj

Through Hole

Kurşunsuz Kodu

yes

Çalışma Sıcaklığı

-55°C~125°C

RoHS Durumu

ROHS3 Compliant

Yayın Yılı

2012

HTS Kodu

8536.69.40.40

Terminal

Solder

Özellikler

Elevated, Open Frame

Seri

116

JESD-609 Kodu

e3

Pitch Post

0.100 2.54mm

Contact Finish Mating

Gold

Number Of Contacts

24

Lead Length

3.175mm

ECCN Kodu

EAR99

Contact Material Post

Brass

Termination Post Length

0.125 3.18mm

Additional Feature

94V-0

Material Flammability Rating

UL94 V-0

Number Of Positions Or Pins Grid

24 (2 x 12)

Contact Resistance

10mOhm

Pin Sayısı

24

Montaj Tipi

Through Hole

Contact Finish Post

Tin
