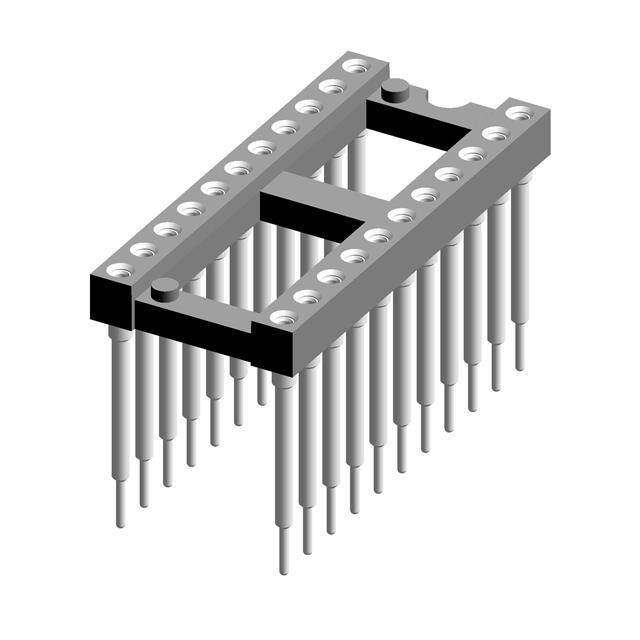

116-87-422-41-009101

Teknik Özellikler

Seri

116

Özellikler

Elevated, Open Frame

Terminal

Solder

HTS Kodu

8536.69.40.40

Contact Finish Mating

Gold

Pitch Post

0.100 2.54mm

JESD-609 Kodu

e3

Yayın Yılı

2012

Material Flammability Rating

UL94 V-0

Pin Sayısı

22

Number Of Positions Or Pins Grid

22 (2 x 11)

Contact Resistance

10mOhm

Additional Feature

94V-0

Contact Finish Post

Tin

Montaj Tipi

Through Hole

ECCN Kodu

EAR99

Lead Length

3.175mm

Number Of Contacts

22

Termination Post Length

0.125 3.18mm

Contact Material Post

Brass

Akım Değeri

1A

Contact Finish Thickness Mating

Flash

Ambalaj

Bulk

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Tip

DIP, 0.4 (10.16mm) Row Spacing

Parça Durumu

Active

Pitch Mating

0.100 2.54mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Fabrika Tedarik Süresi

10 Weeks

Flammability Rating

UL94 V-0

RoHS Durumu

ROHS3 Compliant

Kurşunsuz Kodu

yes

Montaj

Through Hole

Çalışma Sıcaklığı

-55°C~125°C

Contact Material Mating

Beryllium Copper
