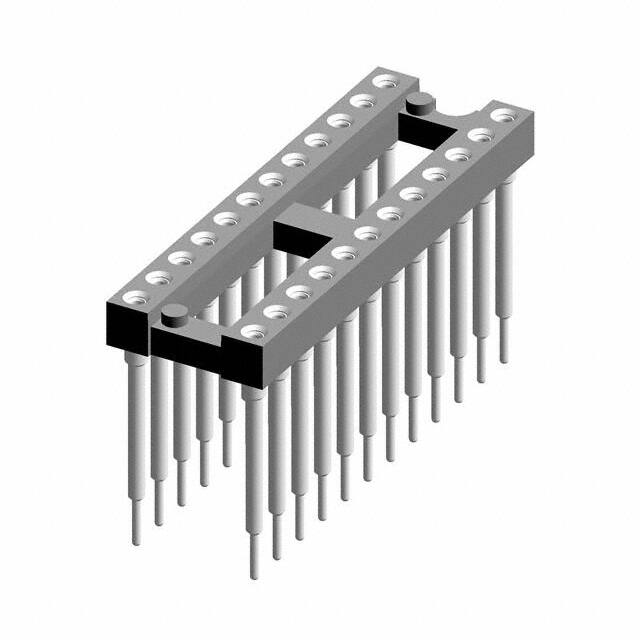

116-87-324-41-009101

Teknik Özellikler

ECCN Kodu

EAR99

Number Of Contacts

24

Lead Length

3.175mm

Termination Post Length

0.125 3.18mm

Contact Material Post

Brass

Number Of Positions Or Pins Grid

24 (2 x 12)

Contact Resistance

10mOhm

Pin Sayısı

24

Material Flammability Rating

UL94 V-0

Additional Feature

94V-0

Contact Finish Post

Tin

Montaj Tipi

Through Hole

Yayın Yılı

2012

Seri

116

Özellikler

Elevated, Open Frame

Terminal

Solder

HTS Kodu

8536.69.40.40

Contact Finish Mating

Gold

JESD-609 Kodu

e3

Pitch Post

0.100 2.54mm

Montaj

Through Hole

Kurşunsuz Kodu

yes

Çalışma Sıcaklığı

-55°C~125°C

Contact Material Mating

Beryllium Copper

RoHS Durumu

ROHS3 Compliant

Tip

DIP, 0.3 (7.62mm) Row Spacing

Parça Durumu

Active

Pitch Mating

0.100 2.54mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Flammability Rating

UL94 V-0

Fabrika Tedarik Süresi

10 Weeks

Akım Değeri

1A

Contact Finish Thickness Mating

Flash

Ambalaj

Bulk

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
