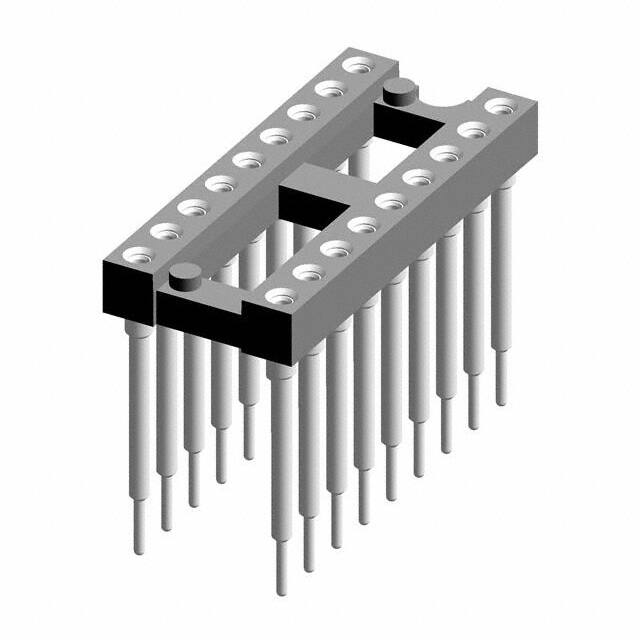

116-87-318-41-009101

Teknik Özellikler

Lead Length

3.175mm

Flammability Rating

UL94 V-0

HTS Kodu

8536.69.40.40

Contact Resistance

10mOhm

Contact Finish Mating

Gold

Additional Feature

94V-0

Çalışma Sıcaklığı

-55°C~125°C

Montaj Tipi

Through Hole

Özellikler

Elevated, Open Frame

Ambalaj

Bulk

Pin Sayısı

18

Akım Değeri

1A

Montaj

Through Hole

Number Of Contacts

18

Contact Finish Thickness Mating

Flash

Contact Material Post

Brass

Kurşunsuz Kodu

yes

Contact Finish Post

Tin

Fabrika Tedarik Süresi

10 Weeks

Seri

116

Terminal

Solder

Tip

DIP, 0.3 (7.62mm) Row Spacing

Pitch Mating

0.100 2.54mm

ECCN Kodu

EAR99

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Material Flammability Rating

UL94 V-0

Nem Hassasiyeti (MSL)

1 (Unlimited)

Termination Post Length

0.125 3.18mm

RoHS Durumu

ROHS3 Compliant

Yayın Yılı

2012

Contact Material Mating

Beryllium Copper

Number Of Positions Or Pins Grid

18 (2 x 9)

Pitch Post

0.100 2.54mm

Parça Durumu

Active

JESD-609 Kodu

e3
