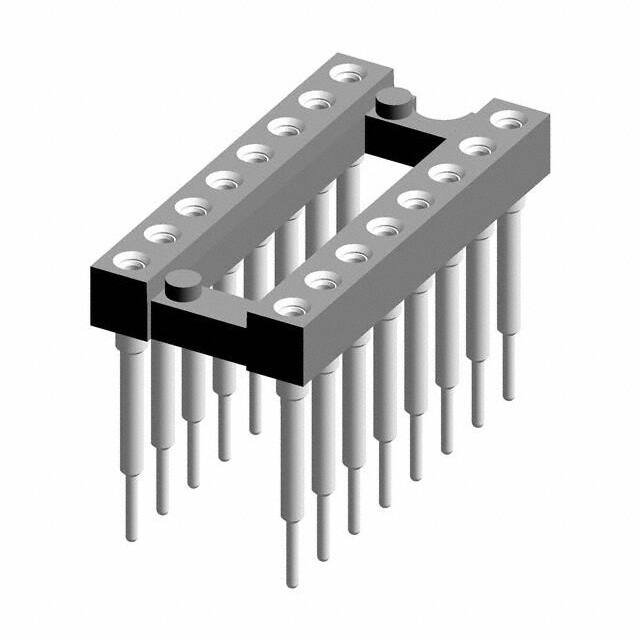

116-87-316-41-007101

Teknik Özellikler

Uzunluk

20.3mm

Orientation

Straight

Nem Hassasiyeti (MSL)

1 (Unlimited)

Material Flammability Rating

UL94 V-0

Voltage Rated Ac

100V

Contact Material Mating

Beryllium Copper

Number Of Positions Or Pins Grid

16 (2 x 8)

Pitch Post

0.100 2.54mm

Parça Durumu

Active

JESD-609 Kodu

e3

RoHS Durumu

ROHS3 Compliant

Termination Post Length

0.125 3.18mm

Yayın Yılı

2012

Contact Finish Post

Tin

Fabrika Tedarik Süresi

10 Weeks

Seri

116

Kurşunsuz Kodu

yes

Tip

DIP, 0.3 (7.62mm) Row Spacing

Voltage Rated Dc

150V

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

ECCN Kodu

EAR99

Pitch Mating

0.100 2.54mm

Terminal

Solder

Number Of Contacts

16

Montaj

Through Hole

Insulation Resistance

10GOhm

Insulation Materials

Polychlorinated

Contact Material Post

Brass

Contact Finish Thickness Mating

Flash

Row Spacing

7.62 mm

Additional Feature

94V-0

Montaj Tipi

Through Hole

Özellikler

Elevated, Open Frame

Ambalaj

Bulk

Çalışma Sıcaklığı

-55°C~125°C

HTS Kodu

8536.69.40.40

Flammability Rating

UL94 V-0

Lead Length

3.175mm

Contact Materials

Copper

Depth

10.1mm
