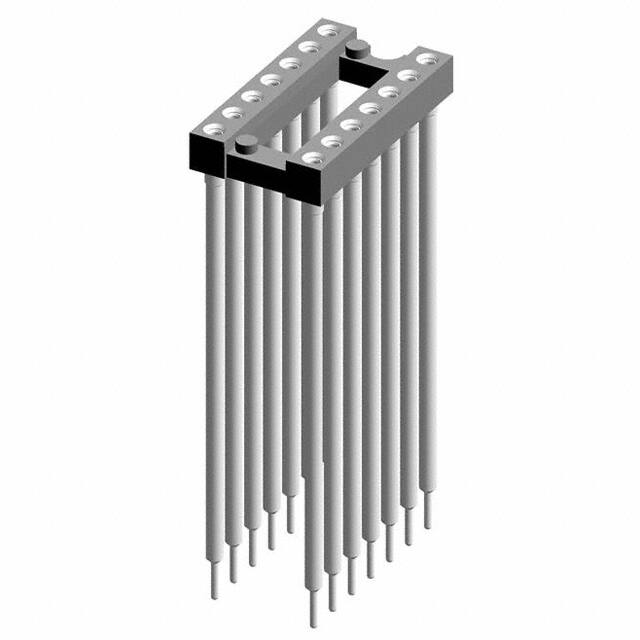

116-87-314-41-013101

Teknik Özellikler

Tip

DIP, 0.3 (7.62mm) Row Spacing

Pitch Mating

0.100 2.54mm

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

ECCN Kodu

EAR99

Terminal

Solder

Contact Finish Post

Tin

Seri

116

Fabrika Tedarik Süresi

10 Weeks

Kurşunsuz Kodu

yes

Contact Material Mating

Beryllium Copper

JESD-609 Kodu

e3

Parça Durumu

Active

Pitch Post

0.100 2.54mm

Number Of Positions Or Pins Grid

14 (2 x 7)

RoHS Durumu

ROHS3 Compliant

Termination Post Length

0.125 3.18mm

Yayın Yılı

2012

Material Flammability Rating

UL94 V-0

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pin Sayısı

14

Akım Değeri

1A

Additional Feature

94V-0

Çalışma Sıcaklığı

-55°C~125°C

Ambalaj

Bulk

Özellikler

Elevated, Open Frame

Montaj Tipi

Through Hole

Flammability Rating

UL94 V-0

Lead Length

3.175mm

HTS Kodu

8536.69.40.40

Contact Finish Mating

Gold

Contact Resistance

10mOhm

Contact Finish Thickness Mating

Flash

Contact Material Post

Brass

Number Of Contacts

14

Montaj

Through Hole
