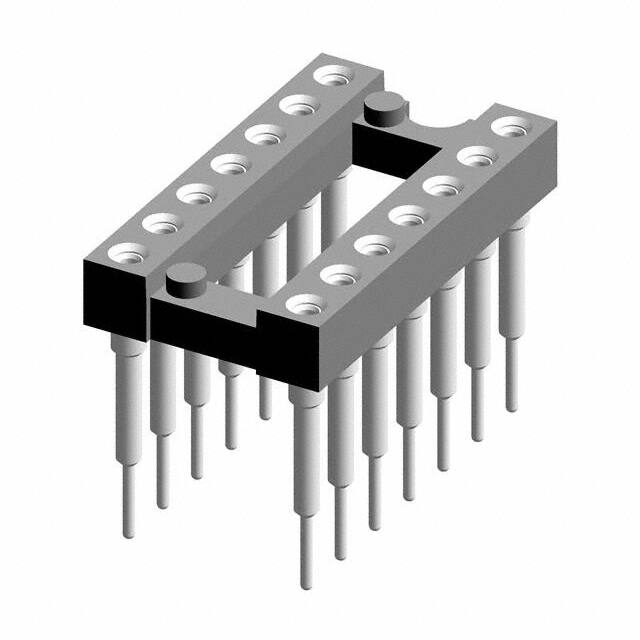

116-87-314-41-012101

Teknik Özellikler

Contact Material Post

Brass

Contact Finish Thickness Mating

Flash

Number Of Contacts

14

Montaj

Through Hole

Pin Sayısı

14

Akım Değeri

1A

Additional Feature

94V-0

Ambalaj

Bulk

Özellikler

Elevated, Open Frame

Montaj Tipi

Through Hole

Çalışma Sıcaklığı

-55°C~125°C

HTS Kodu

8536.69.40.40

Flammability Rating

UL94 V-0

Lead Length

3.175mm

Contact Finish Mating

Gold

Contact Resistance

10mOhm

Contact Material Mating

Beryllium Copper

Parça Durumu

Active

Pitch Post

0.100 2.54mm

Number Of Positions Or Pins Grid

14 (2 x 7)

JESD-609 Kodu

e3

Termination Post Length

0.125 3.18mm

RoHS Durumu

ROHS3 Compliant

Yayın Yılı

2012

Nem Hassasiyeti (MSL)

1 (Unlimited)

Material Flammability Rating

UL94 V-0

Tip

DIP, 0.3 (7.62mm) Row Spacing

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

ECCN Kodu

EAR99

Pitch Mating

0.100 2.54mm

Terminal

Solder

Contact Finish Post

Tin

Seri

116

Fabrika Tedarik Süresi

10 Weeks

Kurşunsuz Kodu

yes
