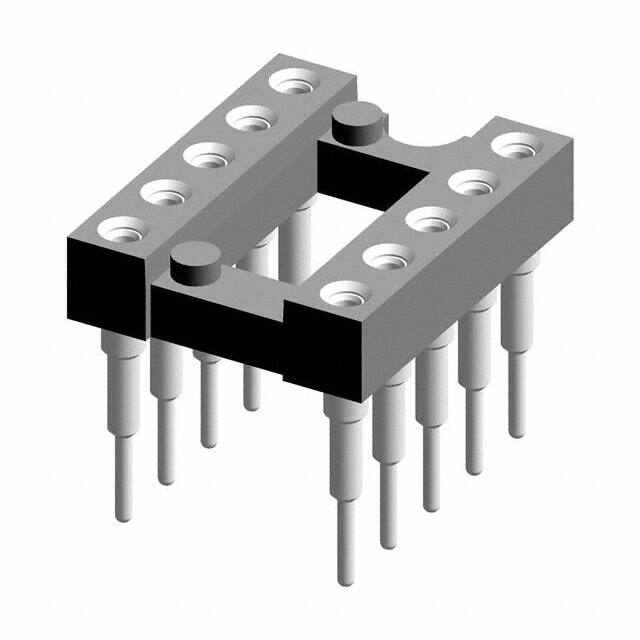

116-87-310-41-018101

Teknik Özellikler

Terminal

Solder

Tip

DIP, 0.3 (7.62mm) Row Spacing

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

ECCN Kodu

EAR99

Pitch Mating

0.100 2.54mm

Kurşunsuz Kodu

yes

Contact Finish Post

Tin

Seri

116

Fabrika Tedarik Süresi

10 Weeks

RoHS Durumu

ROHS3 Compliant

Termination Post Length

0.125 3.18mm

Yayın Yılı

2012

Contact Material Mating

Beryllium Copper

Number Of Positions Or Pins Grid

10 (2 x 5)

Pitch Post

0.100 2.54mm

Parça Durumu

Active

JESD-609 Kodu

e3

Nem Hassasiyeti (MSL)

1 (Unlimited)

Material Flammability Rating

UL94 V-0

Akım Değeri

1A

Pin Sayısı

10

HTS Kodu

8536.69.40.40

Flammability Rating

UL94 V-0

Lead Length

3.175mm

Contact Finish Mating

Gold

Contact Resistance

10mOhm

Additional Feature

94V-0

Montaj Tipi

Through Hole

Özellikler

Elevated, Open Frame

Ambalaj

Bulk

Çalışma Sıcaklığı

-55°C~125°C

Contact Finish Thickness Mating

Flash

Contact Material Post

Brass

Montaj

Through Hole

Number Of Contacts

10
