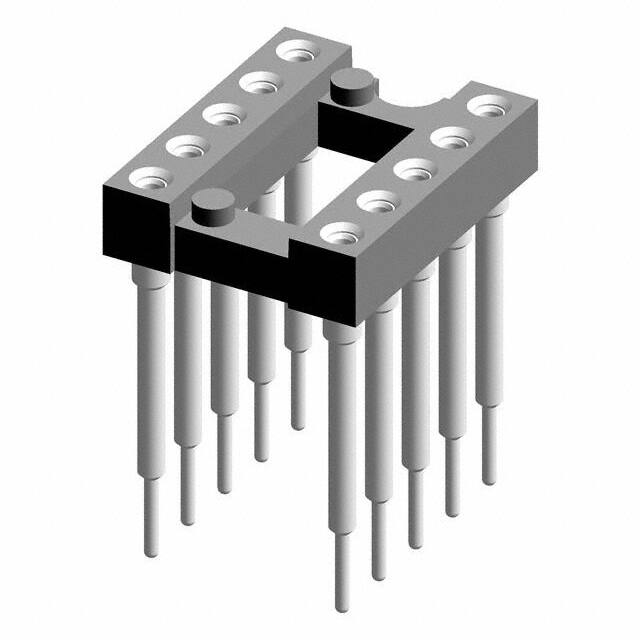

116-87-310-41-008101

Teknik Özellikler

Orientation

Straight

Uzunluk

12.6mm

Material Flammability Rating

UL94 V-0

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Material Mating

Beryllium Copper

Voltage Rated Ac

100V

Pitch Post

0.100 2.54mm

Number Of Positions Or Pins Grid

10 (2 x 5)

Parça Durumu

Active

JESD-609 Kodu

e3

Termination Post Length

0.125 3.18mm

RoHS Durumu

ROHS3 Compliant

Radyasyon Dayanımı

No

Yayın Yılı

2012

Contact Finish Post

Tin

Seri

116

Fabrika Tedarik Süresi

10 Weeks

Kurşunsuz Kodu

yes

Voltage Rated Dc

150V

Tip

DIP, 0.3 (7.62mm) Row Spacing

Pitch Mating

0.100 2.54mm

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

ECCN Kodu

EAR99

Terminal

Solder

Number Of Contacts

10

Montaj

Through Hole

Insulation Resistance

10GOhm

Insulation Materials

Polychlorinated

Contact Material Post

Brass

Contact Finish Thickness Mating

Flash

Additional Feature

94V-0

Row Spacing

7.62 mm

Çalışma Sıcaklığı

-55°C~125°C

Montaj Tipi

Through Hole

Özellikler

Elevated, Open Frame

Ambalaj

Bulk

Flammability Rating

UL94 V-0

Lead Length

3.175mm

Contact Materials

Copper

Depth

10.1mm
