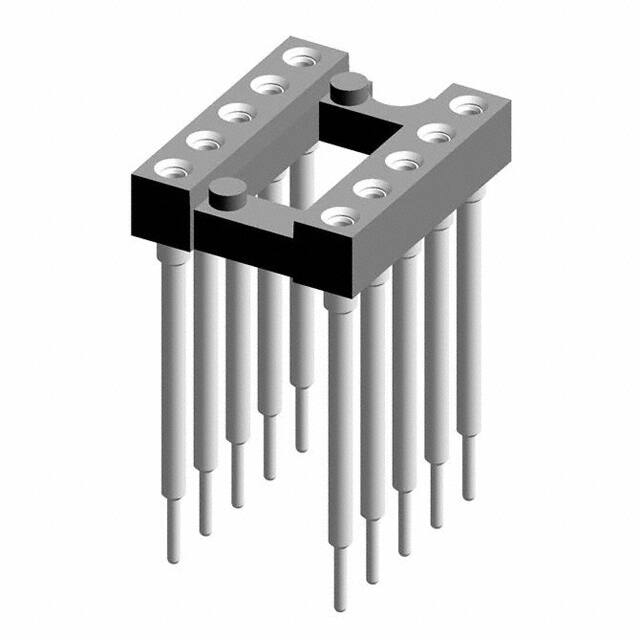

116-87-310-41-001101

Teknik Özellikler

Number Of Contacts

10

Montaj

Through Hole

Insulation Materials

Polychlorinated

Insulation Resistance

10GOhm

Contact Material Post

Brass

Contact Finish Thickness Mating

Flash

Gender

Female

Row Spacing

7.62 mm

Additional Feature

94V-0

Montaj Tipi

Through Hole

Özellikler

Elevated, Open Frame

Ambalaj

Tube

Çalışma Sıcaklığı

-55°C~125°C

HTS Kodu

8536.69.40.40

Depth

10.1mm

Contact Materials

Copper

Contact Resistance

10mOhm

Contact Finish Mating

Gold

Sıra Sayısı

2

Akım Değeri

1A

Uzunluk

12.6mm

Orientation

Straight

Nem Hassasiyeti (MSL)

1 (Unlimited)

Material Flammability Rating

UL94 V-0

Voltage Rated Ac

100V

Contact Material Mating

Beryllium Copper

JESD-609 Kodu

e3

Parça Durumu

Active

Pitch Post

0.100 2.54mm

Number Of Positions Or Pins Grid

10 (2 x 5)

RoHS Durumu

ROHS3 Compliant

Termination Post Length

0.125 3.18mm

Radyasyon Dayanımı

No

Yayın Yılı

2012

Contact Finish Post

Tin

Fabrika Tedarik Süresi

10 Weeks

Seri

116

Kurşunsuz Kodu

yes

Tip

DIP, 0.3 (7.62mm) Row Spacing

Voltage Rated Dc

150V
