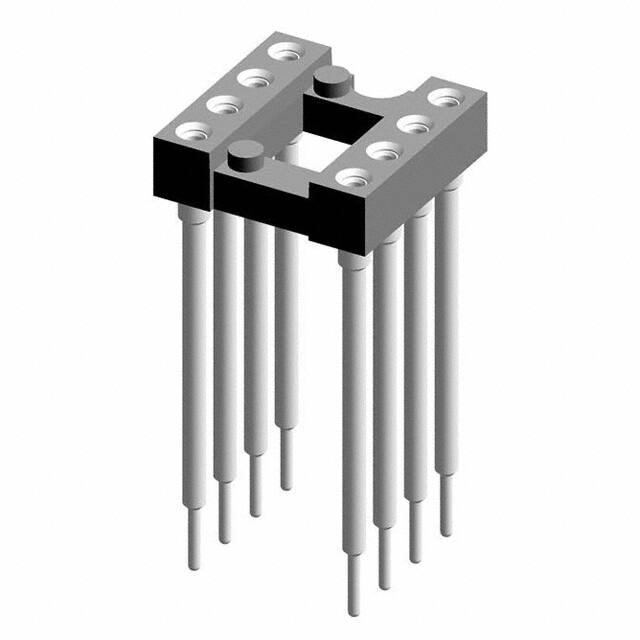

116-87-308-41-011101

Teknik Özellikler

Insulation Resistance

10GOhm

Insulation Materials

Polychlorinated

Contact Material Post

Brass

Contact Finish Thickness Mating

Flash

Montaj

Through Hole

Number Of Contacts

8

Sıra Sayısı

2

Akım Değeri

1A

Flammability Rating

UL94 V-0

Lead Length

3.175mm

Contact Materials

Copper

Depth

10.1mm

HTS Kodu

8536.69.40.40

Contact Finish Mating

Gold

Contact Resistance

10mOhm

Additional Feature

94V-0

Row Spacing

7.62 mm

Çalışma Sıcaklığı

-55°C~125°C

Montaj Tipi

Through Hole

Özellikler

Elevated, Open Frame

Ambalaj

Bulk

Termination Post Length

0.125 3.18mm

RoHS Durumu

ROHS3 Compliant

Yayın Yılı

2012

Contact Material Mating

Beryllium Copper

Voltage Rated Ac

100V

Number Of Positions Or Pins Grid

8 (2 x 4)

Pitch Post

0.100 2.54mm

Parça Durumu

Active

JESD-609 Kodu

e3

Material Flammability Rating

UL94 V-0

Nem Hassasiyeti (MSL)

1 (Unlimited)

Orientation

Straight

Uzunluk

10.1mm

Terminal

Solder

Voltage Rated Dc

150V

Tip

DIP, 0.3 (7.62mm) Row Spacing

Pitch Mating

0.100 2.54mm

ECCN Kodu

EAR99

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
