Adet bazlı fiyat
- 1+ adet$1.13
- 10+ adet$1.07
- 100+ adet$1.01
- 500+ adet$0.95
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği

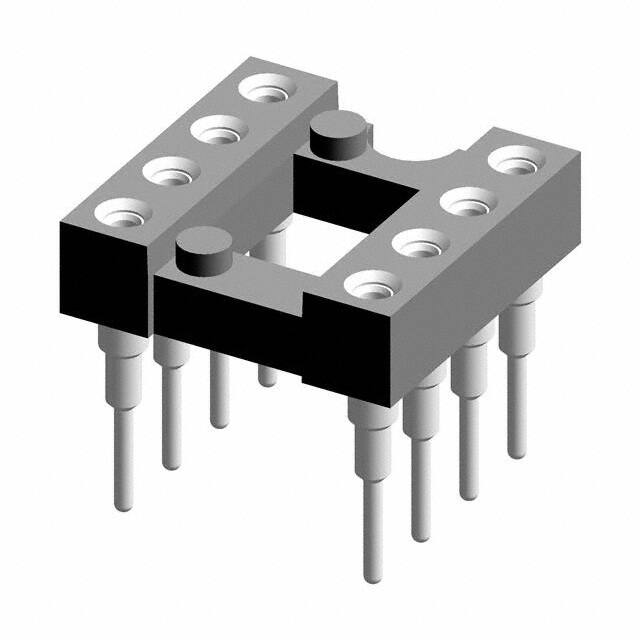

Teknik Özellikler
- Gender
- Female
- Insulation Resistance
- 10GOhm
- Insulation Materials
- Polychlorinated
- Contact Material Post
- Brass
- Contact Finish Thickness Mating
- Flash
- Number Of Contacts
- 8
- Sıra Sayısı
- 2
- Akım Değeri
- 1A
- HTS Kodu
- 8536.69.40.40
- Contact Materials
- Copper
- Depth
- 10.1mm
- Contact Finish Mating
- Gold
- Contact Resistance
- 10mOhm
- Row Spacing
- 7.62 mm
- Additional Feature
- 94V-0
- Montaj Tipi
- Through Hole
- Özellikler
- Elevated, Open Frame
- Ambalaj
- Tube
- Çalışma Sıcaklığı
- -55°C~125°C
- Termination Post Length
- 0.125 3.18mm
- RoHS Durumu
- ROHS3 Compliant
- Yayın Yılı
- 2012
- Voltage Rated Ac
- 100V
- Contact Material Mating
- Beryllium Copper
- Number Of Positions Or Pins Grid
- 8 (2 x 4)
- Pitch Post
- 0.100 2.54mm
- Parça Durumu
- Active
- JESD-609 Kodu
- e3
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Material Flammability Rating
- UL94 V-0
- Uzunluk
- 10.1mm
- Orientation
- Straight
- Terminal
- Solder
- Tip
- DIP, 0.3 (7.62mm) Row Spacing
- Voltage Rated Dc
- 150V
- ECCN Kodu
- EAR99
- Housing Material
- Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
- Pitch Mating
- 0.100 2.54mm
- Kurşunsuz Kodu
- yes
- Contact Finish Post
- Tin
