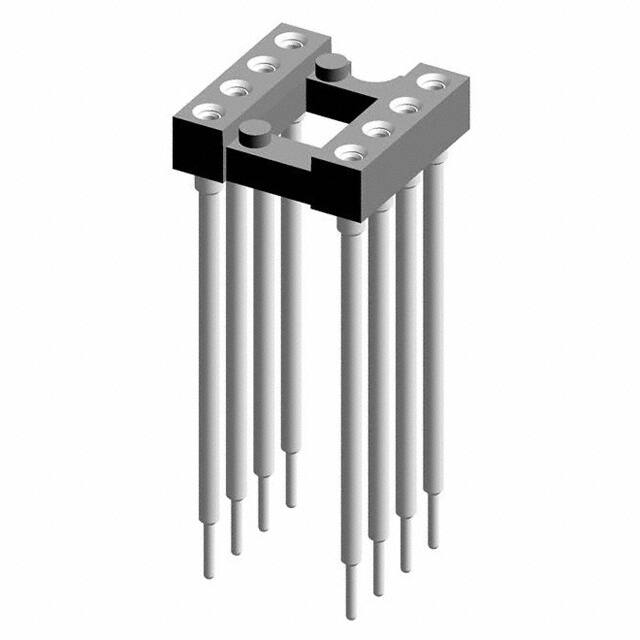

116-87-308-41-004101

Teknik Özellikler

Çalışma Sıcaklığı

-55°C~125°C

Montaj Tipi

Through Hole

Özellikler

Elevated, Open Frame

Ambalaj

Bulk

Additional Feature

94V-0

Contact Finish Mating

Gold

Contact Resistance

10mOhm

Flammability Rating

UL94 V-0

Lead Length

3.175mm

Akım Değeri

1A

Pin Sayısı

8

Number Of Contacts

8

Montaj

Through Hole

Contact Finish Thickness Mating

Flash

Contact Material Post

Brass

Seri

116

Fabrika Tedarik Süresi

10 Weeks

Contact Finish Post

Tin

Kurşunsuz Kodu

yes

Pitch Mating

0.100 2.54mm

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

ECCN Kodu

EAR99

Tip

DIP, 0.3 (7.62mm) Row Spacing

Terminal

Solder

Material Flammability Rating

UL94 V-0

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Positions Or Pins Grid

8 (2 x 4)

Pitch Post

0.100 2.54mm

Parça Durumu

Active

JESD-609 Kodu

e3

Contact Material Mating

Beryllium Copper

Yayın Yılı

2012

RoHS Durumu

ROHS3 Compliant

Termination Post Length

0.125 3.18mm
