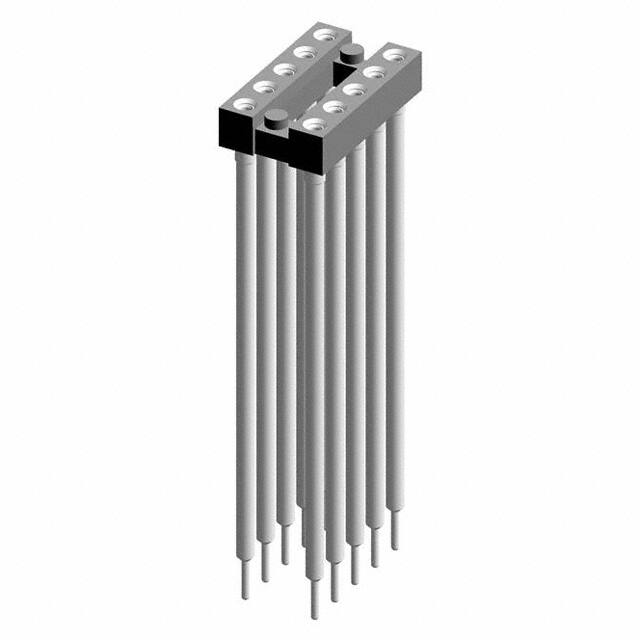

116-87-210-41-013101

Teknik Özellikler

Contact Finish Post

Tin

Seri

116

Pcb Contact Pattern

RECTANGULAR

Fabrika Tedarik Süresi

10 Weeks

Body Length Or Diameter

0.496 inch

Kurşunsuz Kodu

yes

Tip

DIP, 0.2 (5.08mm) Row Spacing

Body Depth

0.11 inch

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

ECCN Kodu

EAR99

Pitch Mating

0.100 2.54mm

Terminal

Solder

Mating Contact Pitch

0.1 inch

Nem Hassasiyeti (MSL)

1 (Unlimited)

Material Flammability Rating

UL94 V-0

Contact Material Mating

Beryllium Copper

Body Breadth

0.299 inch

JESD-609 Kodu

e3

Parça Durumu

Active

Number Of Positions Or Pins Grid

10 (2 x 5)

Pitch Post

0.100 2.54mm

Termination Post Length

0.125 3.18mm

RoHS Durumu

ROHS3 Compliant

Terminal Adımı

2.54mm

Yayın Yılı

2012

Additional Feature

94V-0

Montaj Tipi

Through Hole

Özellikler

Elevated, Open Frame

Ambalaj

Bulk

Çalışma Sıcaklığı

-55°C~125°C

HTS Kodu

8536.69.40.40

Flammability Rating

UL94 V-0

Lead Length

3.175mm

Contact Finish Mating

Gold

Contact Resistance

10mOhm

Dielectric Withstanding Voltage

1400VAC V

Akım Değeri

1A

Pin Sayısı

10

Number Of Contacts

10

Contact Style

RND PIN-SKT
