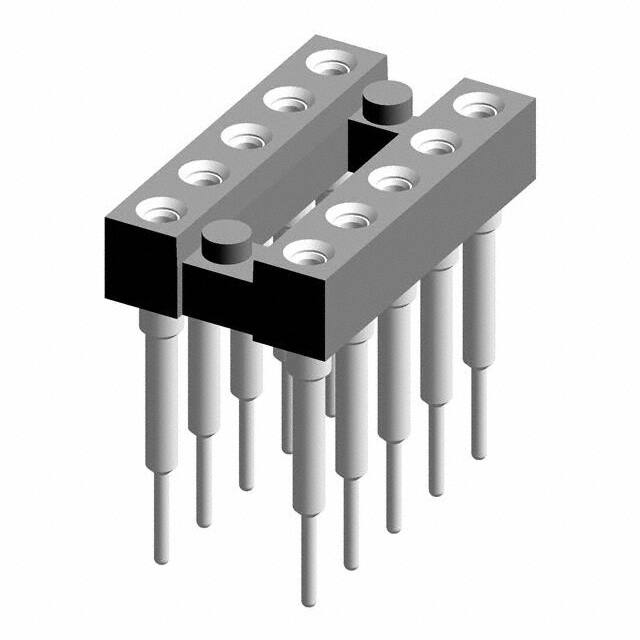

116-87-210-41-012101

Teknik Özellikler

Material Flammability Rating

UL94 V-0

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mating Contact Pitch

0.1 inch

Pitch Post

0.100 2.54mm

Number Of Positions Or Pins Grid

10 (2 x 5)

Parça Durumu

Active

JESD-609 Kodu

e3

Contact Material Mating

Beryllium Copper

Body Breadth

0.299 inch

Terminal Adımı

2.54mm

Yayın Yılı

2012

Termination Post Length

0.125 3.18mm

RoHS Durumu

ROHS3 Compliant

Body Length Or Diameter

0.496 inch

Seri

116

Pcb Contact Pattern

RECTANGULAR

Fabrika Tedarik Süresi

10 Weeks

Contact Finish Post

Tin

Kurşunsuz Kodu

yes

Pitch Mating

0.100 2.54mm

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

ECCN Kodu

EAR99

Body Depth

0.11 inch

Tip

DIP, 0.2 (5.08mm) Row Spacing

Terminal

Solder

Number Of Contacts

10

Montaj

Through Hole

Contact Style

RND PIN-SKT

Contact Material Post

Brass

Contact Finish Thickness Mating

Flash

Pcb Contact Row Spacing

0.2 mm

Çalışma Sıcaklığı

-55°C~125°C

Montaj Tipi

Through Hole

Özellikler

Elevated, Open Frame

Ambalaj

Bulk

Additional Feature

94V-0

Contact Finish Mating

Gold

Contact Resistance

10mOhm

Flammability Rating

UL94 V-0

Lead Length

3.175mm
