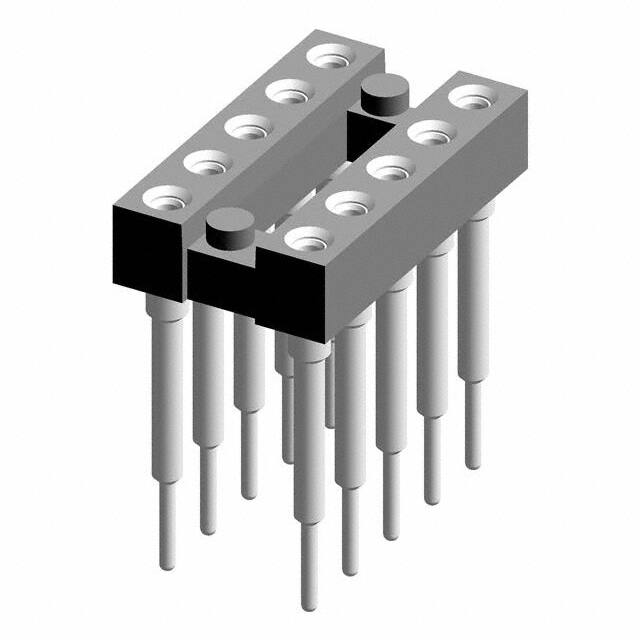

116-87-210-41-007101

Teknik Özellikler

Nem Hassasiyeti (MSL)

1 (Unlimited)

Material Flammability Rating

UL94 V-0

Mating Contact Pitch

0.1 inch

Terminal Adımı

2.54mm

Yayın Yılı

2012

RoHS Durumu

ROHS3 Compliant

Termination Post Length

0.125 3.18mm

JESD-609 Kodu

e3

Parça Durumu

Active

Pitch Post

0.100 2.54mm

Number Of Positions Or Pins Grid

10 (2 x 5)

Body Breadth

0.299 inch

Contact Material Mating

Beryllium Copper

Kurşunsuz Kodu

yes

Seri

116

Pcb Contact Pattern

RECTANGULAR

Fabrika Tedarik Süresi

10 Weeks

Body Length Or Diameter

0.496 inch

Contact Finish Post

Tin

Terminal

Solder

ECCN Kodu

EAR99

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Pitch Mating

0.100 2.54mm

Tip

DIP, 0.2 (5.08mm) Row Spacing

Body Depth

0.11 inch

Montaj

Through Hole

Contact Style

RND PIN-SKT

Number Of Contacts

10

Pcb Contact Row Spacing

0.2 mm

Contact Finish Thickness Mating

Flash

Contact Material Post

Brass

Contact Resistance

10mOhm

Contact Finish Mating

Gold

HTS Kodu

8536.69.40.40

Flammability Rating

UL94 V-0

Lead Length

3.175mm

Montaj Tipi

Through Hole

Ambalaj

Bulk

Özellikler

Elevated, Open Frame

Çalışma Sıcaklığı

-55°C~125°C
