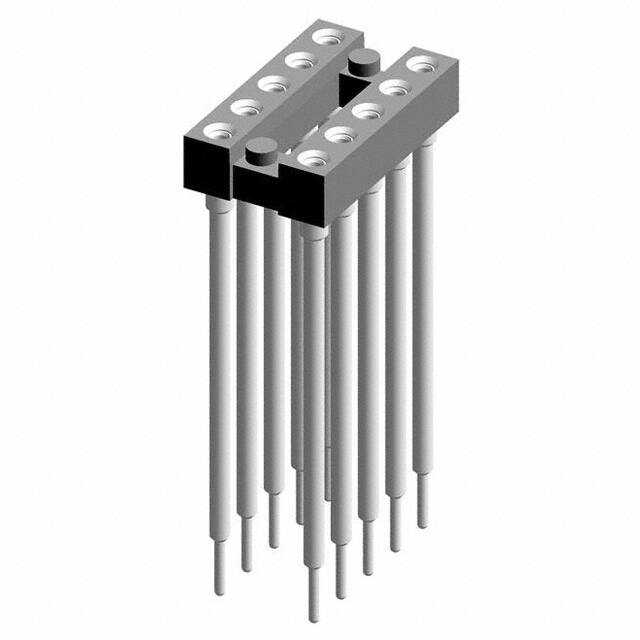

116-87-210-41-004101

Teknik Özellikler

Pcb Contact Row Spacing

0.2 mm

Contact Material Post

Brass

Contact Finish Thickness Mating

Flash

Contact Style

RND PIN-SKT

Montaj

Through Hole

Number Of Contacts

10

Pin Sayısı

10

Akım Değeri

1A

Dielectric Withstanding Voltage

1400VAC V

Flammability Rating

UL94 V-0

Lead Length

3.175mm

HTS Kodu

8536.69.40.40

Contact Resistance

10mOhm

Contact Finish Mating

Gold

Additional Feature

94V-0

Çalışma Sıcaklığı

-55°C~125°C

Ambalaj

Bulk

Özellikler

Elevated, Open Frame

Montaj Tipi

Through Hole

Termination Post Length

0.125 3.18mm

RoHS Durumu

ROHS3 Compliant

Yayın Yılı

2012

Terminal Adımı

2.54mm

Body Breadth

0.299 inch

Contact Material Mating

Beryllium Copper

JESD-609 Kodu

e3

Parça Durumu

Active

Pitch Post

0.100 2.54mm

Number Of Positions Or Pins Grid

10 (2 x 5)

Mating Contact Pitch

0.1 inch

Material Flammability Rating

UL94 V-0

Nem Hassasiyeti (MSL)

1 (Unlimited)

Terminal

Solder

Body Depth

0.11 inch

Tip

DIP, 0.2 (5.08mm) Row Spacing

Pitch Mating

0.100 2.54mm

ECCN Kodu

EAR99

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Kurşunsuz Kodu

yes

Contact Finish Post

Tin
