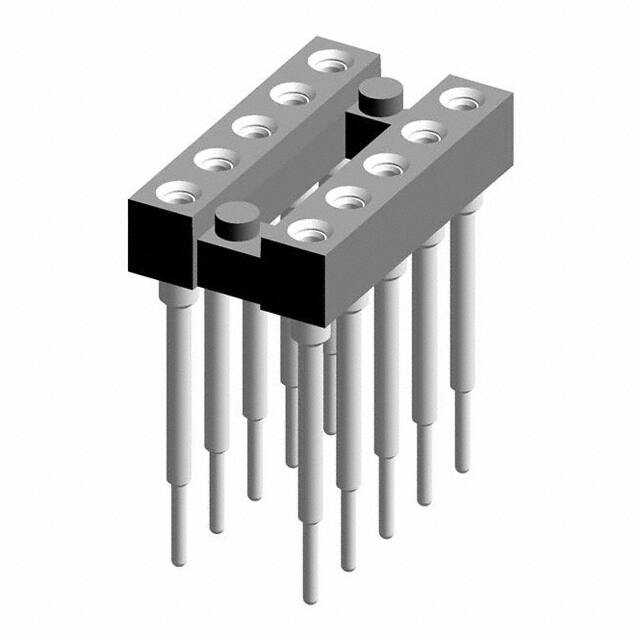

116-87-210-41-002101

Teknik Özellikler

Number Of Positions Or Pins Grid

10 (2 x 5)

Pitch Post

0.100 2.54mm

Parça Durumu

Active

JESD-609 Kodu

e3

Contact Material Mating

Beryllium Copper

Yayın Yılı

2012

Termination Post Length

0.125 3.18mm

RoHS Durumu

ROHS3 Compliant

Orientation

Straight

Material Flammability Rating

UL94 V-0

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mating Contact Pitch

0.1 inch

Pitch Mating

0.100 2.54mm

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

ECCN Kodu

EAR99

Body Depth

0.11 inch

Tip

DIP, 0.2 (5.08mm) Row Spacing

Terminal

Solder

Body Length Or Diameter

0.496 inch

Seri

116

Pcb Contact Pattern

RECTANGULAR

Fabrika Tedarik Süresi

10 Weeks

Contact Finish Post

Tin

Kurşunsuz Kodu

yes

Contact Material Post

Brass

Contact Finish Thickness Mating

Flash

Number Of Contacts

10

Montaj

Through Hole

Contact Style

RND PIN-SKT

Dielectric Withstanding Voltage

1400VAC V

Akım Değeri

1A

Sıra Sayısı

2

Çalışma Sıcaklığı

-55°C~125°C

Montaj Tipi

Through Hole

Özellikler

Elevated, Open Frame

Ambalaj

Bulk

Additional Feature

94V-0

Contact Finish Mating

Gold

Contact Resistance

10mOhm

Flammability Rating

UL94 V-0
