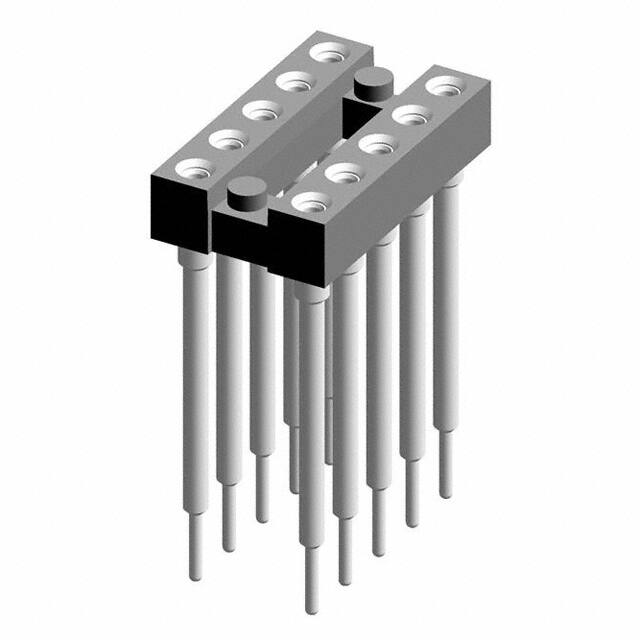

116-87-210-41-001101

Teknik Özellikler

Additional Feature

94V-0

Çalışma Sıcaklığı

-55°C~125°C

Ambalaj

Bulk

Özellikler

Elevated, Open Frame

Montaj Tipi

Through Hole

Lead Length

3.175mm

Flammability Rating

UL94 V-0

HTS Kodu

8536.69.40.40

Contact Finish Mating

Gold

Contact Resistance

10mOhm

Dielectric Withstanding Voltage

1400VAC V

Pin Sayısı

10

Akım Değeri

1A

Number Of Contacts

10

Contact Style

RND PIN-SKT

Montaj

Through Hole

Contact Material Post

Brass

Contact Finish Thickness Mating

Flash

Pcb Contact Row Spacing

0.2 mm

Contact Finish Post

Tin

Body Length Or Diameter

0.496 inch

Fabrika Tedarik Süresi

10 Weeks

Pcb Contact Pattern

RECTANGULAR

Seri

116

Kurşunsuz Kodu

yes

Body Depth

0.11 inch

Tip

DIP, 0.2 (5.08mm) Row Spacing

Pitch Mating

0.100 2.54mm

ECCN Kodu

EAR99

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Terminal

Solder

Mating Contact Pitch

0.1 inch

Material Flammability Rating

UL94 V-0

Nem Hassasiyeti (MSL)

1 (Unlimited)

Body Breadth

0.299 inch

Contact Material Mating

Beryllium Copper

JESD-609 Kodu

e3

Parça Durumu

Active

Pitch Post

0.100 2.54mm

Number Of Positions Or Pins Grid

10 (2 x 5)
