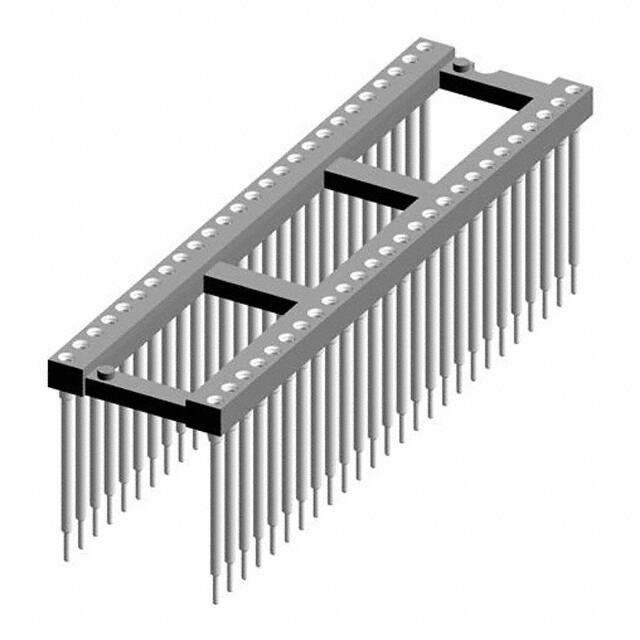

116-83-652-41-011101

Teknik Özellikler

Montaj

Through Hole

Number Of Contacts

52

Contact Material Post

Brass

Contact Finish Thickness Mating

29.5μin 0.75μm

Contact Finish Mating

Gold

Contact Resistance

10mOhm

Flammability Rating

UL94 V-0

Lead Length

3.175mm

HTS Kodu

8536.69.40.40

Çalışma Sıcaklığı

-55°C~125°C

Ambalaj

Bulk

Özellikler

Elevated, Open Frame

Montaj Tipi

Through Hole

Additional Feature

94V-0

Akım Değeri

1A

Pin Sayısı

52

Material Flammability Rating

UL94 V-0

Nem Hassasiyeti (MSL)

1 (Unlimited)

Yayın Yılı

2012

Termination Post Length

0.125 3.18mm

RoHS Durumu

ROHS3 Compliant

Number Of Positions Or Pins Grid

52 (2 x 26)

Pitch Post

0.100 2.54mm

Parça Durumu

Active

JESD-609 Kodu

e3

Contact Material Mating

Beryllium Copper

Kurşunsuz Kodu

yes

Fabrika Tedarik Süresi

10 Weeks

Seri

116

Contact Finish Post

Tin

Terminal

Solder

Pitch Mating

0.100 2.54mm

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

ECCN Kodu

EAR99

Tip

DIP, 0.6 (15.24mm) Row Spacing
