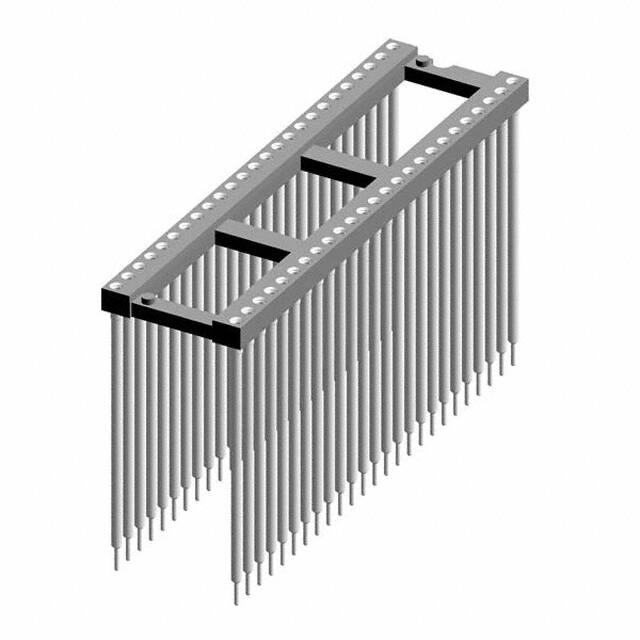

116-83-650-41-013101

Teknik Özellikler

Kurşunsuz Kodu

yes

Contact Finish Post

Tin

Seri

116

Fabrika Tedarik Süresi

10 Weeks

Terminal

Solder

Tip

DIP, 0.6 (15.24mm) Row Spacing

Pitch Mating

0.100 2.54mm

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

ECCN Kodu

EAR99

Material Flammability Rating

UL94 V-0

Nem Hassasiyeti (MSL)

1 (Unlimited)

Termination Post Length

0.125 3.18mm

RoHS Durumu

ROHS3 Compliant

Yayın Yılı

2012

Contact Material Mating

Beryllium Copper

JESD-609 Kodu

e3

Number Of Positions Or Pins Grid

50 (2 x 25)

Pitch Post

0.100 2.54mm

Parça Durumu

Active

Flammability Rating

UL94 V-0

Lead Length

3.175mm

HTS Kodu

8536.69.40.40

Contact Finish Mating

Gold

Contact Resistance

10mOhm

Additional Feature

94V-0

Çalışma Sıcaklığı

-55°C~125°C

Montaj Tipi

Through Hole

Özellikler

Elevated, Open Frame

Ambalaj

Bulk

Akım Değeri

1A

Pin Sayısı

50

Montaj

Through Hole

Number Of Contacts

50

Contact Finish Thickness Mating

29.5μin 0.75μm

Contact Material Post

Brass
