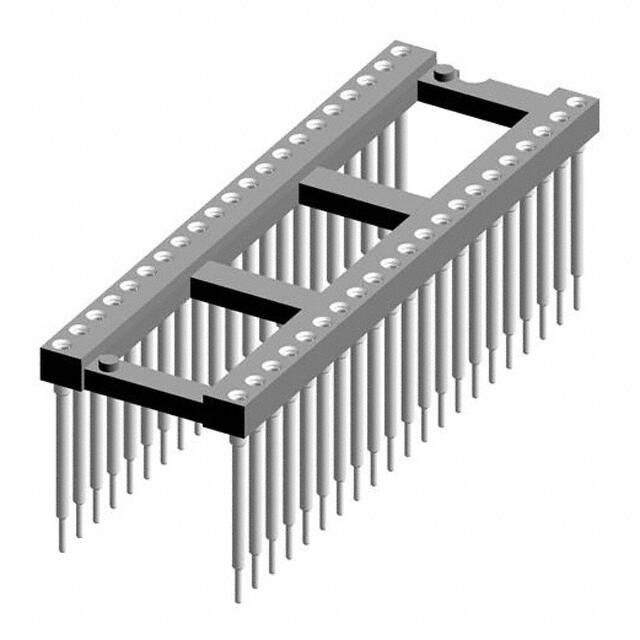

116-83-642-41-001101

Teknik Özellikler

Contact Material Post

Brass

Contact Finish Thickness Mating

29.5μin 0.75μm

Montaj

Through Hole

Number Of Contacts

42

Pin Sayısı

42

Akım Değeri

1A

HTS Kodu

8536.69.40.40

Lead Length

3.175mm

Flammability Rating

UL94 V-0

Contact Finish Mating

Gold

Contact Resistance

10mOhm

Additional Feature

94V-0

Ambalaj

Bulk

Özellikler

Elevated, Open Frame

Montaj Tipi

Through Hole

Çalışma Sıcaklığı

-55°C~125°C

RoHS Durumu

ROHS3 Compliant

Termination Post Length

0.125 3.18mm

Yayın Yılı

2012

Contact Material Mating

Beryllium Copper

Number Of Positions Or Pins Grid

42 (2 x 21)

Pitch Post

0.100 2.54mm

Parça Durumu

Active

JESD-609 Kodu

e3

Nem Hassasiyeti (MSL)

1 (Unlimited)

Material Flammability Rating

UL94 V-0

Terminal

Solder

Tip

DIP, 0.6 (15.24mm) Row Spacing

ECCN Kodu

EAR99

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Pitch Mating

0.100 2.54mm

Kurşunsuz Kodu

yes

Contact Finish Post

Tin

Fabrika Tedarik Süresi

10 Weeks

Seri

116
