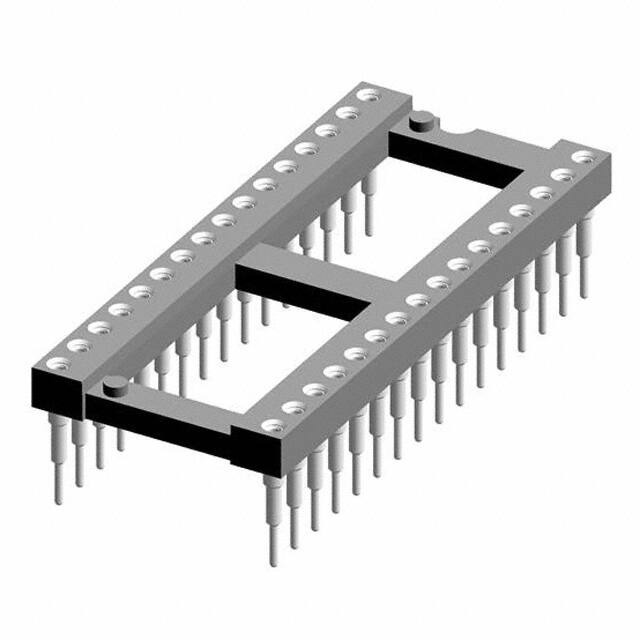

116-83-632-41-018101

Teknik Özellikler

Nem Hassasiyeti (MSL)

1 (Unlimited)

Material Flammability Rating

UL94 V-0

JESD-609 Kodu

e3

Parça Durumu

Active

Number Of Positions Or Pins Grid

32 (2 x 16)

Pitch Post

0.100 2.54mm

Contact Material Mating

Beryllium Copper

Yayın Yılı

2012

Termination Post Length

0.125 3.18mm

RoHS Durumu

ROHS3 Compliant

Fabrika Tedarik Süresi

10 Weeks

Seri

116

Contact Finish Post

Tin

Kurşunsuz Kodu

yes

ECCN Kodu

EAR99

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Pitch Mating

0.100 2.54mm

Tip

DIP, 0.6 (15.24mm) Row Spacing

Terminal

Solder

Number Of Contacts

32

Montaj

Through Hole

Contact Material Post

Brass

Contact Finish Thickness Mating

29.5μin 0.75μm

Özellikler

Elevated, Open Frame

Ambalaj

Bulk

Montaj Tipi

Through Hole

Çalışma Sıcaklığı

-55°C~125°C

Additional Feature

94V-0

Contact Finish Mating

Gold

Contact Resistance

10mOhm

HTS Kodu

8536.69.40.40

Lead Length

3.175mm

Flammability Rating

UL94 V-0

Pin Sayısı

32

Akım Değeri

1A
