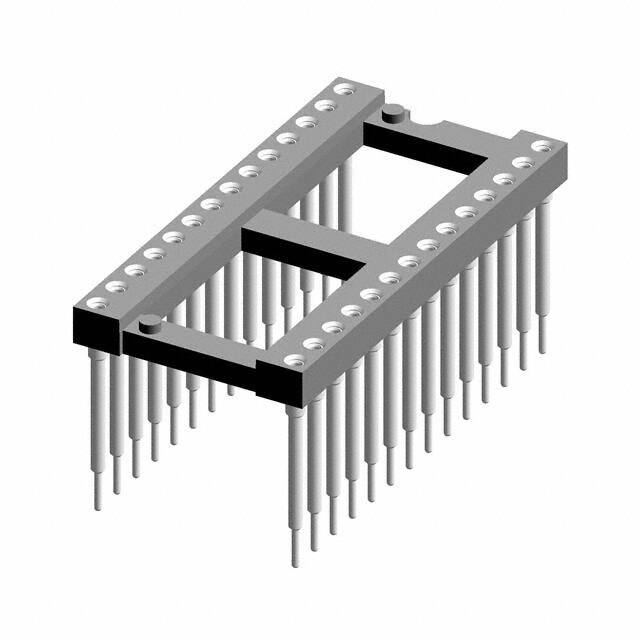

116-83-628-41-009101

Teknik Özellikler

HTS Kodu

8536.69.40.40

Flammability Rating

UL94 V-0

Lead Length

3.175mm

Contact Materials

Copper

Depth

17.7mm

Contact Finish Mating

Gold

Contact Resistance

10mOhm

Row Spacing

15.24 mm

Additional Feature

94V-0

Montaj Tipi

Through Hole

Özellikler

Elevated, Open Frame

Ambalaj

Bulk

Çalışma Sıcaklığı

-55°C~125°C

Sıra Sayısı

2

Akım Değeri

1A

Montaj

Through Hole

Number Of Contacts

28

Insulation Resistance

10GOhm

Insulation Materials

Polychlorinated

Contact Material Post

Brass

Contact Finish Thickness Mating

29.5μin 0.75μm

Kurşunsuz Kodu

yes

Contact Finish Post

Tin

Fabrika Tedarik Süresi

10 Weeks

Seri

116

Terminal

Solder

Tip

DIP, 0.6 (15.24mm) Row Spacing

Voltage Rated Dc

150V

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

ECCN Kodu

EAR99

Pitch Mating

0.100 2.54mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Material Flammability Rating

UL94 V-0

Uzunluk

35.5mm

Orientation

Straight

RoHS Durumu

ROHS3 Compliant

Termination Post Length

0.125 3.18mm

Yayın Yılı

2012

Voltage Rated Ac

100V

Contact Material Mating

Beryllium Copper
