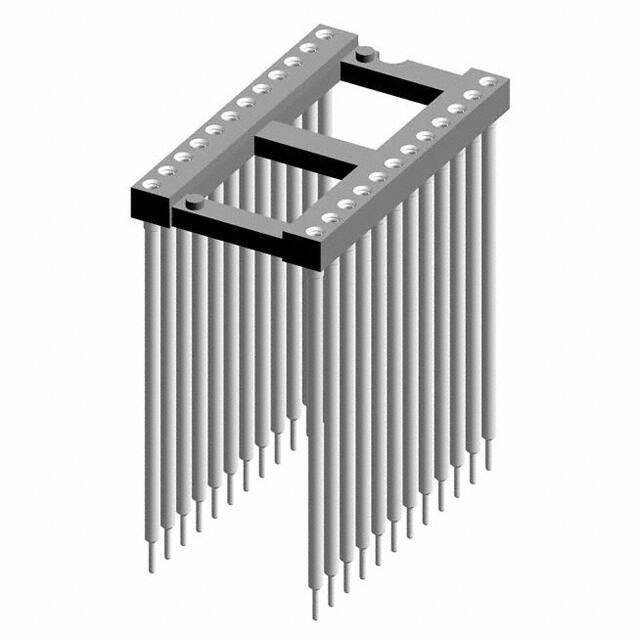

116-83-624-41-013101

Teknik Özellikler

JESD-609 Kodu

e3

Number Of Positions Or Pins Grid

24 (2 x 12)

Pitch Post

0.100 2.54mm

Parça Durumu

Active

Contact Material Mating

Beryllium Copper

Yayın Yılı

2012

Termination Post Length

0.125 3.18mm

RoHS Durumu

ROHS3 Compliant

Material Flammability Rating

UL94 V-0

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pitch Mating

0.100 2.54mm

ECCN Kodu

EAR99

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Tip

DIP, 0.6 (15.24mm) Row Spacing

Terminal

Solder

Fabrika Tedarik Süresi

10 Weeks

Seri

116

Contact Finish Post

Tin

Kurşunsuz Kodu

yes

Contact Material Post

Brass

Contact Finish Thickness Mating

29.5μin 0.75μm

Number Of Contacts

24

Montaj

Through Hole

Pin Sayısı

24

Akım Değeri

1A

Çalışma Sıcaklığı

-55°C~125°C

Montaj Tipi

Through Hole

Özellikler

Elevated, Open Frame

Ambalaj

Bulk

Additional Feature

94V-0

Contact Resistance

10mOhm

Contact Finish Mating

Gold

Flammability Rating

UL94 V-0

Lead Length

3.175mm

HTS Kodu

8536.69.40.40
