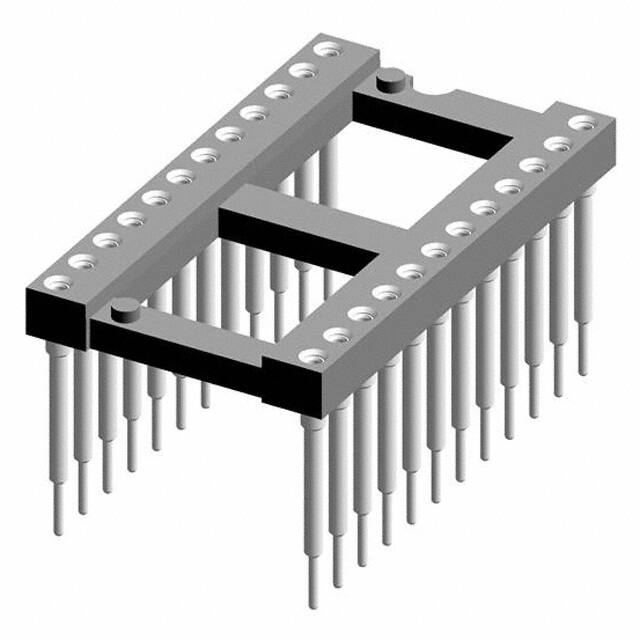

116-83-624-41-008101

Teknik Özellikler

Contact Material Mating

Beryllium Copper

Voltage Rated Ac

100V

JESD-609 Kodu

e3

Parça Durumu

Active

Pitch Post

0.100 2.54mm

Number Of Positions Or Pins Grid

24 (2 x 12)

Termination Post Length

0.125 3.18mm

RoHS Durumu

ROHS3 Compliant

Yayın Yılı

2012

Orientation

Straight

Uzunluk

30.4mm

Material Flammability Rating

UL94 V-0

Nem Hassasiyeti (MSL)

1 (Unlimited)

Voltage Rated Dc

150V

Tip

DIP, 0.6 (15.24mm) Row Spacing

Pitch Mating

0.100 2.54mm

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

ECCN Kodu

EAR99

Terminal

Solder

Contact Finish Post

Tin

Seri

116

Fabrika Tedarik Süresi

10 Weeks

Kurşunsuz Kodu

yes

Insulation Resistance

10GOhm

Insulation Materials

Polychlorinated

Contact Material Post

Brass

Contact Finish Thickness Mating

29.5μin 0.75μm

Number Of Contacts

24

Montaj

Through Hole

Sıra Sayısı

2

Akım Değeri

1A

Additional Feature

94V-0

Row Spacing

7.62 mm

Çalışma Sıcaklığı

-55°C~125°C

Montaj Tipi

Through Hole

Özellikler

Elevated, Open Frame

Ambalaj

Bulk

Flammability Rating

UL94 V-0

Lead Length

3.175mm

Contact Materials

Copper
