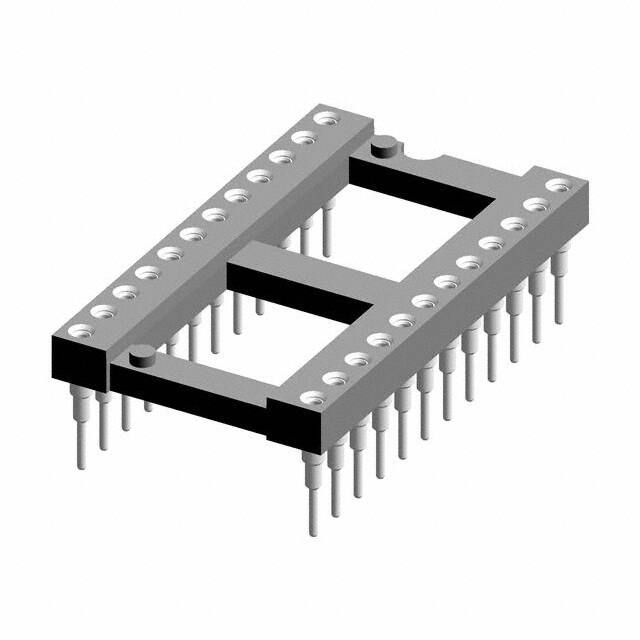

116-83-624-41-006101

Teknik Özellikler

Montaj

Through Hole

Number Of Contacts

24

Contact Material Post

Brass

Contact Finish Thickness Mating

29.5μin 0.75μm

HTS Kodu

8536.69.40.40

Flammability Rating

UL94 V-0

Lead Length

3.175mm

Contact Resistance

10mOhm

Contact Finish Mating

Gold

Additional Feature

94V-0

Ambalaj

Bulk

Özellikler

Elevated, Open Frame

Montaj Tipi

Through Hole

Çalışma Sıcaklığı

-55°C~125°C

Pin Sayısı

24

Akım Değeri

1A

Nem Hassasiyeti (MSL)

1 (Unlimited)

Material Flammability Rating

UL94 V-0

RoHS Durumu

ROHS3 Compliant

Termination Post Length

0.125 3.18mm

Yayın Yılı

2012

Contact Material Mating

Beryllium Copper

Number Of Positions Or Pins Grid

24 (2 x 12)

Pitch Post

0.100 2.54mm

Parça Durumu

Active

JESD-609 Kodu

e3

Kurşunsuz Kodu

yes

Contact Finish Post

Tin

Fabrika Tedarik Süresi

10 Weeks

Seri

116

Terminal

Solder

Tip

DIP, 0.6 (15.24mm) Row Spacing

ECCN Kodu

EAR99

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Pitch Mating

0.100 2.54mm
