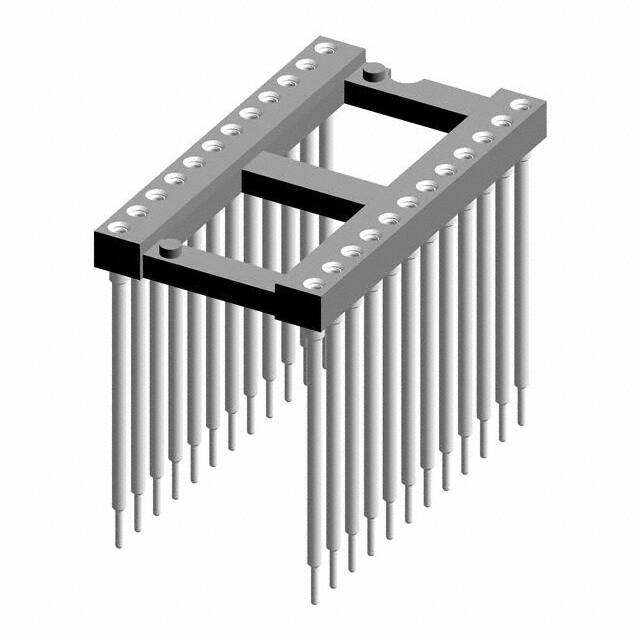

116-83-624-41-004101

Teknik Özellikler

Kurşunsuz Kodu

yes

Seri

116

Fabrika Tedarik Süresi

10 Weeks

Contact Finish Post

Tin

Terminal

Solder

Pitch Mating

0.100 2.54mm

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

ECCN Kodu

EAR99

Tip

DIP, 0.6 (15.24mm) Row Spacing

Material Flammability Rating

UL94 V-0

Nem Hassasiyeti (MSL)

1 (Unlimited)

Yayın Yılı

2012

RoHS Durumu

ROHS3 Compliant

Termination Post Length

0.125 3.18mm

JESD-609 Kodu

e3

Parça Durumu

Active

Pitch Post

0.100 2.54mm

Number Of Positions Or Pins Grid

24 (2 x 12)

Contact Material Mating

Beryllium Copper

Contact Finish Mating

Gold

Contact Resistance

10mOhm

Flammability Rating

UL94 V-0

Lead Length

3.175mm

HTS Kodu

8536.69.40.40

Çalışma Sıcaklığı

-55°C~125°C

Özellikler

Elevated, Open Frame

Ambalaj

Bulk

Montaj Tipi

Through Hole

Additional Feature

94V-0

Pin Sayısı

24

Akım Değeri

1A

Montaj

Through Hole

Number Of Contacts

24

Contact Finish Thickness Mating

29.5μin 0.75μm

Contact Material Post

Brass
