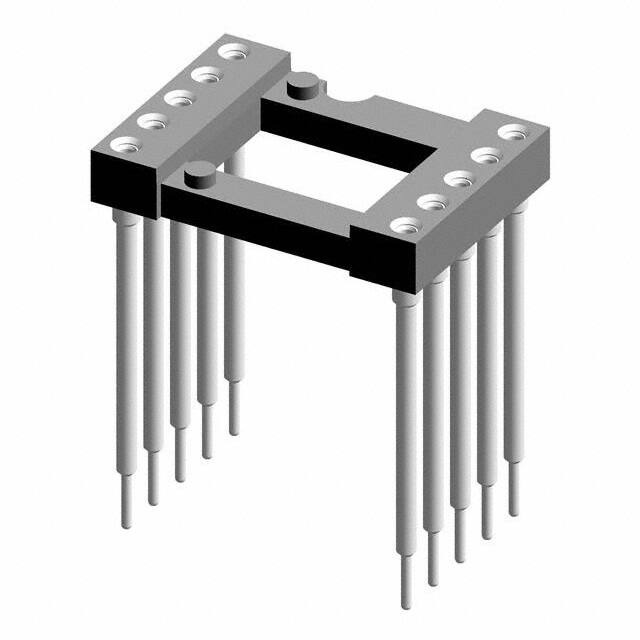

116-83-610-41-011101

Teknik Özellikler

Additional Feature

94V-0

Çalışma Sıcaklığı

-55°C~125°C

Ambalaj

Bulk

Özellikler

Elevated, Open Frame

Montaj Tipi

Through Hole

Lead Length

3.175mm

Flammability Rating

UL94 V-0

HTS Kodu

8536.69.40.40

Contact Finish Mating

Gold

Contact Resistance

10mOhm

Pin Sayısı

10

Akım Değeri

1A

Number Of Contacts

10

Montaj

Through Hole

Contact Finish Thickness Mating

29.5μin 0.75μm

Contact Material Post

Brass

Contact Finish Post

Tin

Fabrika Tedarik Süresi

10 Weeks

Seri

116

Kurşunsuz Kodu

yes

Tip

DIP, 0.6 (15.24mm) Row Spacing

Pitch Mating

0.100 2.54mm

ECCN Kodu

EAR99

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Terminal

Solder

Material Flammability Rating

UL94 V-0

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Material Mating

Beryllium Copper

Number Of Positions Or Pins Grid

10 (2 x 5)

Pitch Post

0.100 2.54mm

Parça Durumu

Active

JESD-609 Kodu

e3

Termination Post Length

0.125 3.18mm

RoHS Durumu

ROHS3 Compliant

Yayın Yılı

2012
