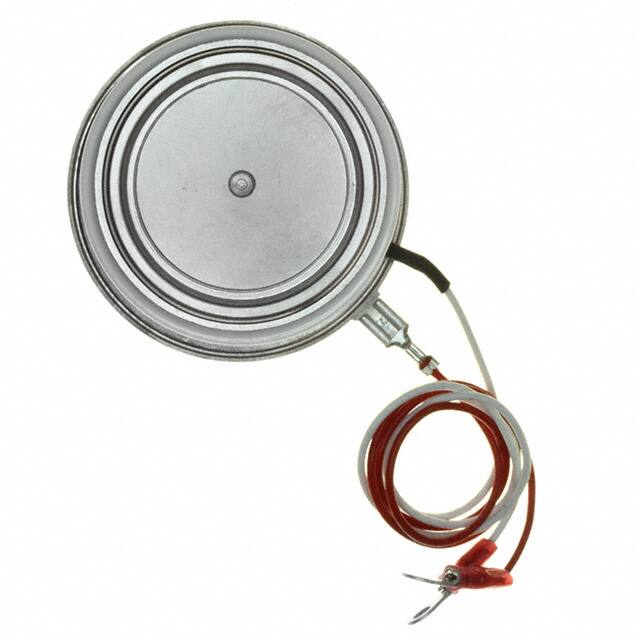

T820169004DH

Teknik Özellikler

Montaj Tipi

Chassis Mount

Trigger Device Type

SCR

RoHS Durumu

RoHS Compliant

Terminal Formu

NO LEAD

ECCN Kodu

EAR99

Pin Sayısı

3

Number Of Elements

1

Terminal Pozisyonu

END

Terminal Sayısı

2

Voltage Gate Trigger Vgt Max

3V

Nonrepetitive Pk Onstate Cur

15000 A

Number Of Scrsdiodes

1 SCR

Kılıf / Paket

TO-200AC, B-PUK

Circuit Commutated Turnoff Timenom

200 μs

Onstate Currentmax

900000A

Current On State It Rms Max

1410A

REACH Uyumluluk Kodu

unknown

Structure

Single

Çalışma Sıcaklığı

-40°C~125°C TJ

Current Gate Trigger Igt Max

150mA

Repetitive Peak Offstate Voltage

1600V

Critical Rate Of Rise Of Offstate Voltagemin

300V/us

Voltageoff State

1.6kV

Repetitive Peak Reverse Voltage

1600V

Ambalaj

Bulk

Jesd30 Code

O-CEDB-N2

Nem Hassasiyeti (MSL)

1 (Unlimited)

Yayın Yılı

2009

Parça Durumu

Active

Qualification Status

Not Qualified

Montaj

Chassis Mount

HTS Kodu

8541.30.00.80

Rms Current Irms

1.41kA

Leakage Current Max

35mA

Current Non Rep Surge5060hz Itsm

13700A 15000A

Current On State It Av Max

900A
