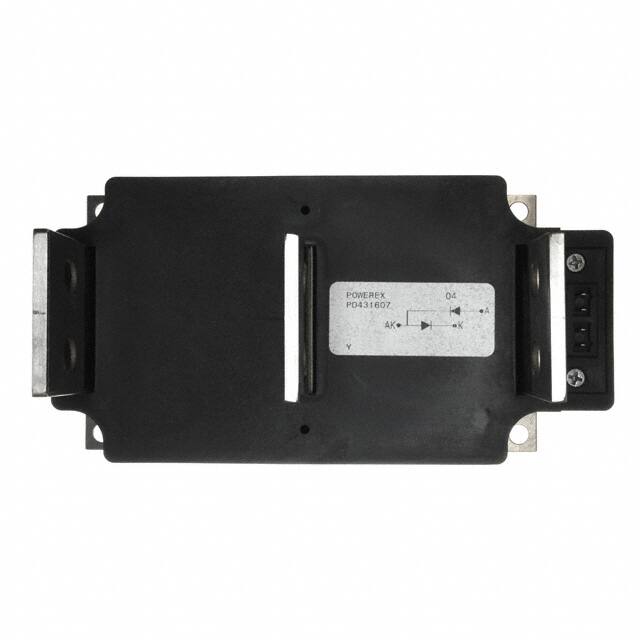

PD431607

Teknik Özellikler

Çalışma Sıcaklığı

-40°C~125°C TJ

Kurşunsuz Kodu

yes

Nonrepetitive Pk Onstate Cur

69000 A

RoHS Durumu

RoHS Compliant

Current On State It Rms Max

1550A

Rms Current Irms

1.55kA

Pin Sayısı

7

Qualification Status

Not Qualified

Ambalaj

Bulk

Trigger Device Type

SCR

Terminal Pozisyonu

UPPER

REACH Uyumluluk Kodu

unknown

Structure

Series Connection - All SCRs

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Montaj

Chassis Mount

Hold Current

300mA

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Current On State It Av Max

700A

Number Of Scrsdiodes

2 SCRs

Nem Hassasiyeti (MSL)

1 (Unlimited)

Leakage Current Max

100mA

Yayın Yılı

2009

Case Connection

ISOLATED

Desc Of Screw Terminals

A-K-AK

Repetitive Peak Reverse Voltage

1600V

Desc Of Quickconnects

2G-K-AK

Voltageoff State

1.6kV

Fabrika Tedarik Süresi

16 Weeks

Kılıf / Paket

POW-R-BLOK™ Module

Number Of Elements

2

Voltage Gate Trigger Vgt Max

4.5V

Configuration

SERIES CONNECTED, CENTER TAP, 2 ELEMENTS

Montaj Tipi

Chassis Mount

Current Non Rep Surge5060hz Itsm

69000A 63000A

Parça Durumu

Active

Terminal Sayısı

7

Current Gate Trigger Igt Max

200mA

Repetitive Peak Offstate Voltage

1600V

Terminal Formu

UNSPECIFIED

HTS Kodu

8541.30.00.80
