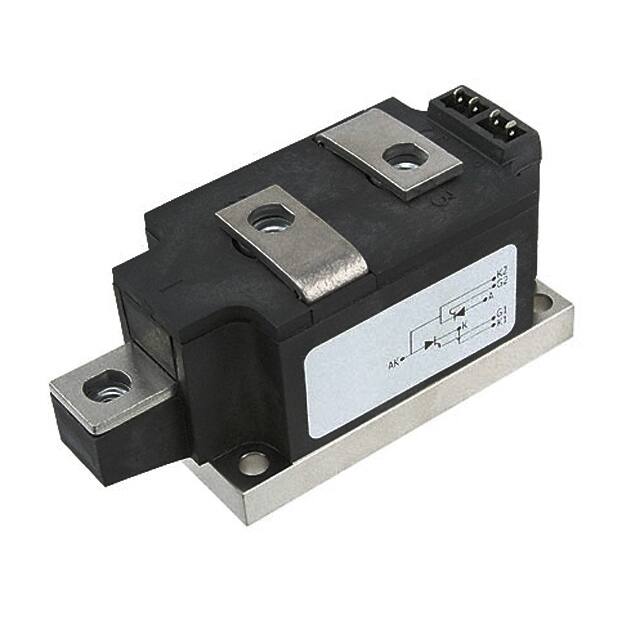

ND431825

Teknik Özellikler

Terminal Sayısı

7

Nonrepetitive Pk Onstate Cur

4000 A

Terminal Pozisyonu

UPPER

Trigger Device Type

SCR

Voltage Rated Dc

1.8kV

Çalışma Sıcaklığı

-40°C~130°C TJ

Repetitive Peak Offstate Voltage

1800V

Number Of Scrsdiodes

2 SCRs

Kılıf / Paket

POW-R-BLOK™ Module

Current Gate Trigger Igt Max

150mA

Parça Durumu

Active

Fabrika Tedarik Süresi

24 Weeks

Rms Current Irms

393A

Pin Sayısı

7

Number Of Elements

2

Yayın Yılı

2004

Montaj Tipi

Chassis Mount

Ambalaj

Bulk

Voltageoff State

1.8kV

Reach Svhc

Unknown

Kurşunsuz Kodu

yes

RoHS Durumu

RoHS Compliant

Radyasyon Dayanımı

No

Desc Of Quickconnects

2G-2GR

Desc Of Screw Terminals

A-K-AK

Current Non Rep Surge5060hz Itsm

8800A @ 60Hz

Configuration

SERIES CONNECTED, CENTER TAP, 2 ELEMENTS

HTS Kodu

8541.30.00.80

Repetitive Peak Reverse Voltage

1800V

Voltage Gate Trigger Vgt Max

3V

Pin Sayısı

7

Nem Hassasiyeti (MSL)

1 (Unlimited)

Terminal Formu

UNSPECIFIED

Case Connection

ISOLATED

Onstate Currentmax

250000A

Additional Feature

UL RECOGNIZED

Current On State It Av Max

250A

Montaj

Chassis Mount, Screw

Structure

Series Connection - All SCRs
