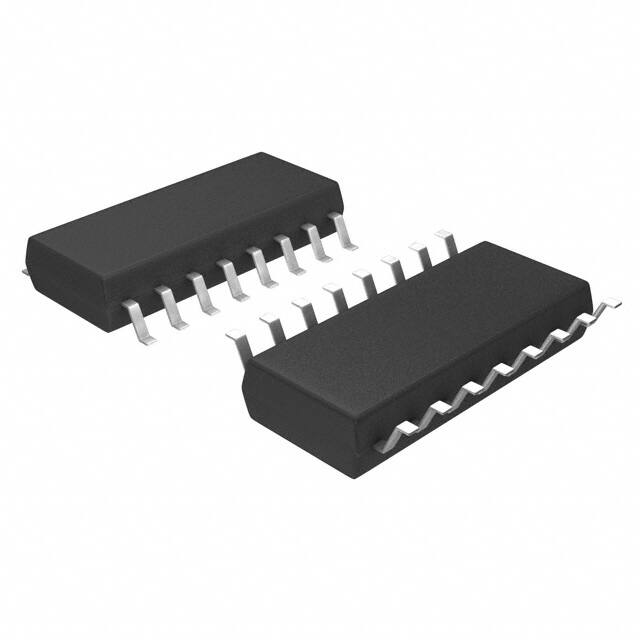

M63991FP

Teknik Özellikler

Package Equivalence Code

SOP16,.3

Turnoff Time

0.33 μs

Rds On Typ

20 Ω LS, 40 Ω HS

Terminal Adımı

1.27mm

Pin Sayısı

16

Rohs Code

No

Çalışma Sıcaklığı

-20°C~125°C TJ

Package Shape

RECTANGULAR

Driver Number Of Bits

1

Terminal Formu

GULL WING

Applications

AC Motors

Qualification Status

Not Qualified

Turn On Time

0.35 μs

Yüzey Montaj

YES

Interface Ic Type

HALF BRIDGE BASED PERIPHERAL DRIVER

Part Package Code

SOIC

Ambalaj

Bulk

ECCN Kodu

EAR99

Besleme Gerilimi

4.5V~5.5V

Turnon Time

0.35 μs

Part Life Cycle Code

Obsolete

Supply Voltagenom

5 V

Operating Temperaturemax

75 °C

Supply Voltage1max

520 V

Output Current Flow Direction

SOURCE SINK

Besleme Gerilimi

5V

Fonksiyon Sayısı

1

Maks. Oturma Yüksekliği

2mm

Jesd30 Code

R-PDSO-G16

Interface

Logic

Terminal Sayısı

16

Ihs Manufacturer

MITSUBISHI ELECTRIC CORP

Package Body Material

PLASTIC/EPOXY

Number Of Terminals

16

Pin Sayısı

16

Operating Temperaturemin

-20 °C

Parça Durumu

Active

Terminal Pozisyonu

DUAL

HTS Kodu

8542.39.00.01

Seated Heightmax

2.1 mm
