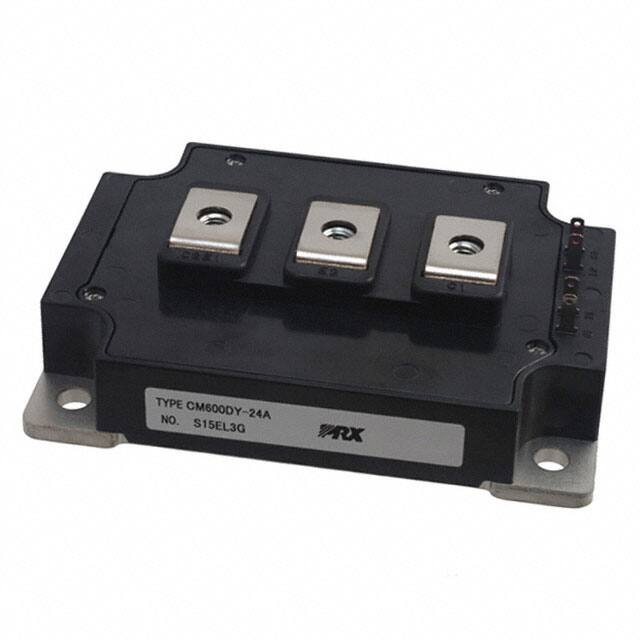

CM600DY-24A

Teknik Özellikler

Continuous Collector Current At25 C

600 A

Montaj

Chassis Mount

Transistor Application

POWER CONTROL

Kurşunsuz Kodu

yes

Terminal Sayısı

7

Minimum Operating Temperature

- 40 C

Gateemitter Leakage Current

0.5 uA

Max Collector Current

600A

Collector Emitter Voltage Vceo Max

1200 V

RoHS

Details

Terminal Pozisyonu

UPPER

Current Collector Cutoff Max

1mA

Çalışma Sıcaklığı

-40°C~150°C TJ

Pin Sayısı

7

Pin Sayısı

7

Height Mm

30 mm

Montaj Stili

Screw

Terminal Formu

UNSPECIFIED

Collector Emitter Voltage Vceo

3V

Configuration

Half Bridge

Fabrika Paket Adedi

10

Number Of Elements

2

Input

Standard

Pd Power Dissipation

3670 W

Üretici Parça No

CM600DY-24A

Voltage Collector Emitter Breakdown Max

1200V

Parça Durumu

Discontinued

Maximum Gate Emitter Voltage

20 V

Maks. Çalışma Sıcaklığı

+ 150 C

Max Power Dissipation

3.67kW

ECCN Kodu

EAR99

Collectoremitter Saturation Voltage

2.1 V

Input Capacitance Cies Vce

94nF @ 10V

Montaj Tipi

Chassis Mount

Seri

IGBTMOD™

Polaritychannel Type

N-CHANNEL

Ntc Thermistor

No

RoHS Durumu

RoHS Compliant

Vceon Max Vge Ic

3V @ 15V, 600A

Case Connection

ISOLATED
