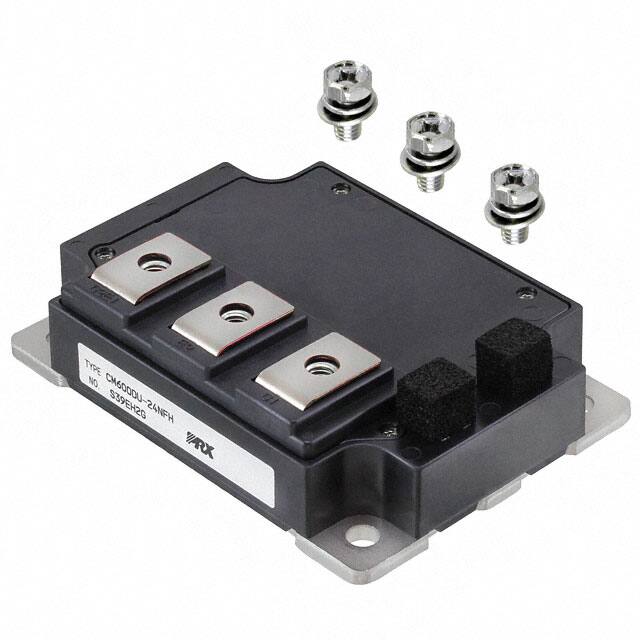

CM600DU-24NFH

Teknik Özellikler

Reach Svhc

Unknown

Maximum Gate Emitter Voltage

20 V

Maks. Çalışma Sıcaklığı

+ 150 C

Yayın Yılı

2008

Collectoremitter Breakdown Voltage

1.2kV

Nem Hassasiyeti (MSL)

1 (Unlimited)

Power Max

1550W

Kılıf / Paket

Module

Continuous Collector Current At25 C

600 A

Montaj

Chassis Mount

Gateemitter Leakage Current

2 uA

Terminal Sayısı

7

RoHS

Details

Pin Sayısı

7

Çalışma Sıcaklığı

-40°C~150°C TJ

Height Mm

29 mm

Fabrika Paket Adedi

10

Input

Standard

Pd Power Dissipation

1500 W

Üretici Parça No

CM600DU-24NFH

Voltage Collector Emitter Breakdown Max

1200V

Parça Durumu

Discontinued

Max Power Dissipation

1.55kW

Input Capacitance Cies Vce

95nF @ 10V

Collectoremitter Saturation Voltage

1.2kV

Montaj Tipi

Chassis Mount

Seri

IGBTMOD™

Polaritychannel Type

N-CHANNEL

Ntc Thermistor

No

RoHS Durumu

RoHS Compliant

Input Capacitance

95nF

Case Connection

ISOLATED

Vceon Max Vge Ic

6.5V @ 15V, 600A

Max Breakdown Voltage

1.2kV

Transistor Element Material

SILICON

Transistor Application

POWER CONTROL

Minimum Operating Temperature

- 40 C

Kurşunsuz Kodu

yes

Collector Emitter Voltage Vceo Max

1200 V

Max Collector Current

600A
