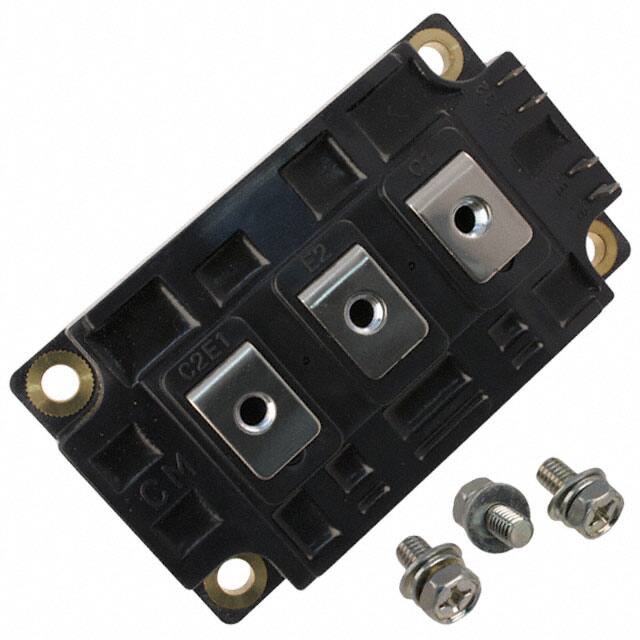

CM400DY-12H

Teknik Özellikler

Montaj

Chassis Mount, Screw

Max Power Dissipation

1.5kW

Max Collector Current

400A

Seri

IGBTMOD™

Çalışma Sıcaklığı

-40°C~150°C TJ

RoHS Durumu

Non-RoHS Compliant

Ntc Thermistor

No

Terminal Pozisyonu

UPPER

Number Of Elements

2

Parça Durumu

Obsolete

Input

Standard

Montaj Tipi

Chassis Mount

Gateemitter Voltagemax

20V

Terminal Sayısı

7

Vceon Max Vge Ic

2.8V @ 15V, 400A

Element Configuration

Dual

Input Capacitance

40nF

Current Collector Cutoff Max

1mA

Pin Sayısı

7

Case Connection

ISOLATED

Yayın Yılı

1998

Power Dissipation

1.5kW

Nem Hassasiyeti (MSL)

1 (Unlimited)

Transistor Application

MOTOR CONTROL

Input Capacitance Cies Vce

40nF @ 10V

Kılıf / Paket

Module

Transistor Element Material

SILICON

Terminal Formu

UNSPECIFIED

Power Max

1500W

Collector Emitter Voltage Vceo

2.8V

Collectoremitter Breakdown Voltage

600V

Polaritychannel Type

N-CHANNEL

Configuration

Half Bridge
