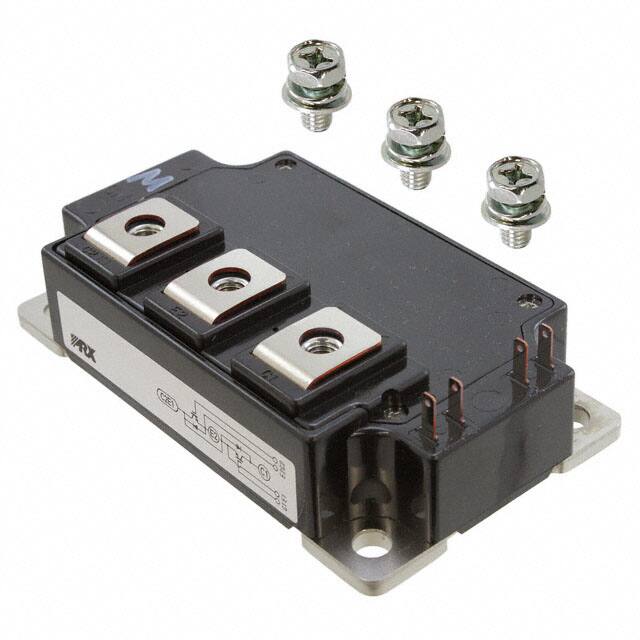

CM400DU-12NFH

Teknik Özellikler

Collectoremitter Saturation Voltage

2 V

Yayın Yılı

2009

Pin Sayısı

7

Case Connection

ISOLATED

Nem Hassasiyeti (MSL)

1 (Unlimited)

Transistor Application

POWER CONTROL

RoHS

Details

Kurşunsuz Kodu

yes

Vceon Max Vge Ic

2.7V @ 15V, 400A

Element Configuration

Dual

Terminal Sayısı

7

Pin Sayısı

7

Current Collector Cutoff Max

1mA

Input Capacitance

110nF

Power Max

960W

Collectoremitter Breakdown Voltage

600V

Polaritychannel Type

N-CHANNEL

Collector Emitter Voltage Vceo

2.7V

Configuration

Half Bridge

ECCN Kodu

EAR99

Maks. Çalışma Sıcaklığı

+ 150 C

Kılıf / Paket

Module

Input Capacitance Cies Vce

110nF @ 10V

Transistor Element Material

SILICON

Terminal Formu

UNSPECIFIED

Max Collector Current

400A

Seri

IGBTMOD™

Çalışma Sıcaklığı

-40°C~150°C TJ

Pd Power Dissipation

960 W

Max Power Dissipation

960W

Montaj

Chassis Mount, Screw

Fabrika Paket Adedi

10

Collector Emitter Voltage Vceo Max

600 V

Input

Standard

Montaj Tipi

Chassis Mount

Minimum Operating Temperature

- 40 C

Continuous Collector Current At25 C

400 A

RoHS Durumu

RoHS Compliant

Parça Durumu

Discontinued

Gateemitter Leakage Current

0.5 uA
