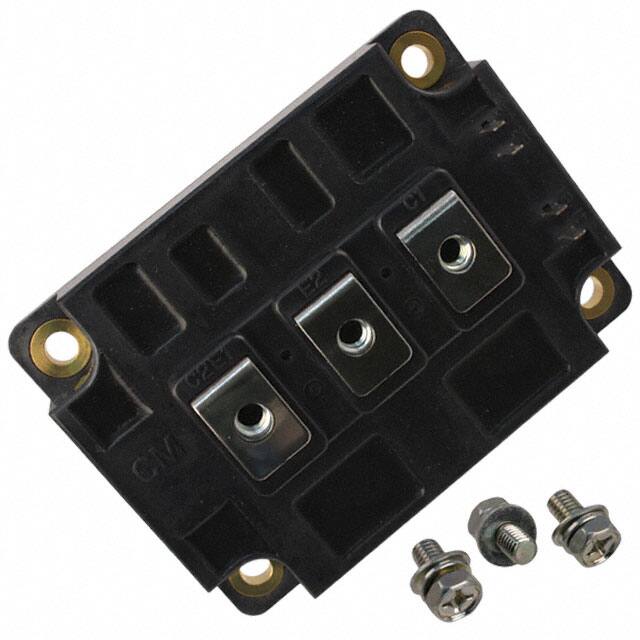

CM300DY-24H

Teknik Özellikler

Kılıf / Paket

Module

Input Capacitance Cies Vce

60nF @ 10V

Terminal Formu

UNSPECIFIED

Transistor Element Material

SILICON

Power Max

2100W

Turn Off Timenom Toff

700 ns

Configuration

Half Bridge

Polaritychannel Type

N-CHANNEL

Collectoremitter Breakdown Voltage

1.2kV

Collector Emitter Voltage Vceo

3.2V

Element Configuration

Dual

Vceon Max Vge Ic

3.2V @ 15V, 300A

Terminal Sayısı

7

Pin Sayısı

7

Input Capacitance

60nF

Current Collector Cutoff Max

1mA

Yayın Yılı

2001

Power Dissipation

2.1kW

Case Connection

ISOLATED

Transistor Application

MOTOR CONTROL

Nem Hassasiyeti (MSL)

1 (Unlimited)

RoHS Durumu

Non-RoHS Compliant

Parça Durumu

Obsolete

Number Of Elements

2

Ntc Thermistor

No

Terminal Pozisyonu

UPPER

Montaj Tipi

Chassis Mount

Gateemitter Voltagemax

20V

Input

Standard

Max Power Dissipation

2.1kW

Montaj

Chassis Mount, Screw

Voltage Collector Emitter Breakdown Max

1200V

Seri

IGBTMOD™

Max Collector Current

300A

Çalışma Sıcaklığı

-40°C~150°C TJ
