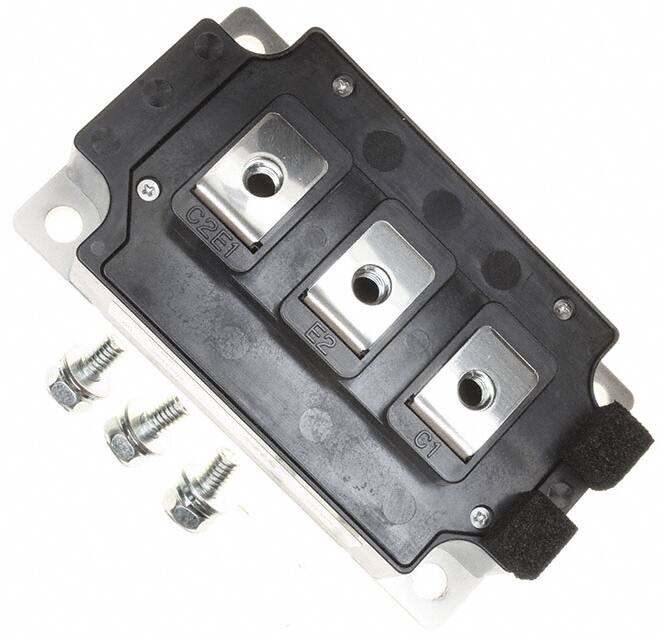

CM300DY-24A

Teknik Özellikler

Seri

IGBTMOD™

Max Collector Current

300A

Pd Power Dissipation

1890 W

Üretici Parça No

CM300DY-24A

Çalışma Sıcaklığı

-40°C~150°C TJ

Montaj

Chassis Mount

Max Power Dissipation

1.89kW

Voltage Collector Emitter Breakdown Max

1200V

Fabrika Paket Adedi

10

Collector Emitter Voltage Vceo Max

1200 V

Montaj Tipi

Chassis Mount

Input

Standard

RoHS Durumu

RoHS Compliant

Continuous Collector Current At25 C

300 A

Height Mm

30 mm

Minimum Operating Temperature

- 40 C

Number Of Elements

2

Terminal Pozisyonu

UPPER

Ntc Thermistor

No

Gateemitter Leakage Current

0.5 uA

Parça Durumu

Discontinued

Case Connection

ISOLATED

Pin Sayısı

7

Yayın Yılı

2010

Collectoremitter Saturation Voltage

2.1 V

Kurşunsuz Kodu

yes

RoHS

Details

Transistor Application

POWER CONTROL

Nem Hassasiyeti (MSL)

1 (Unlimited)

Terminal Sayısı

7

Vceon Max Vge Ic

3V @ 15V, 300A

Current Collector Cutoff Max

1mA

Input Capacitance

47nF

Pin Sayısı

7

Power Max

1890W

ECCN Kodu

EAR99

Montaj Stili

Screw

Configuration

Half Bridge

Maximum Gate Emitter Voltage

20 V

Collector Emitter Voltage Vceo

3V
